Brand Name : | QUESTT |
Model Number : | QA-AC1000 |
Certification : | CE ISO |
Payment Terms : | T/T, Western Union, |
Supply Ability : | 3000 sets per year |
Delivery Time : | 7 days |
Air cooling laser welding cleaning machine
Features
Parameters
Model | QA-LWF800A | QA-LWF1200A | QA-LWF1500A |
Average output power | 800W | 1200w | 1500w |
Power Consumption | 2500w | 4500w | 5500w |
Operation Mode | CW/Modulate | ||
Max Frequency | 20KHz | ||
Output Power Stability | ±3% | ||
Red Laser | Yes | ||
Terminal Type | QBH | ||
Delivery Cable Length | 10M | ||
Power Supply | 1 PH 220V 50/60Hz | ||
Cooling | Air-cooled | ||
Operation Temperature | -10-40 degree | ||
Max Depth of welding | 2mm | 3mm | 4mm |
Cleaning range | 1-20mm | ||
Cutting thickness | 0.2mm | 0.3mm | 0.5mm |
Machine Net Weight | 50kg | 55kg | 58kg |
Machine Gross Weight | 66kg | 70kg | 73kg |
Machine dimension | 700*400*700mm | 700*400*700mm | 700*400*700mm |
Main parts pictures
Name | Pictures |
Max laser source 100,000 hours lifetime and can choose other brand laser source according to customer’s requirement | ![]() |

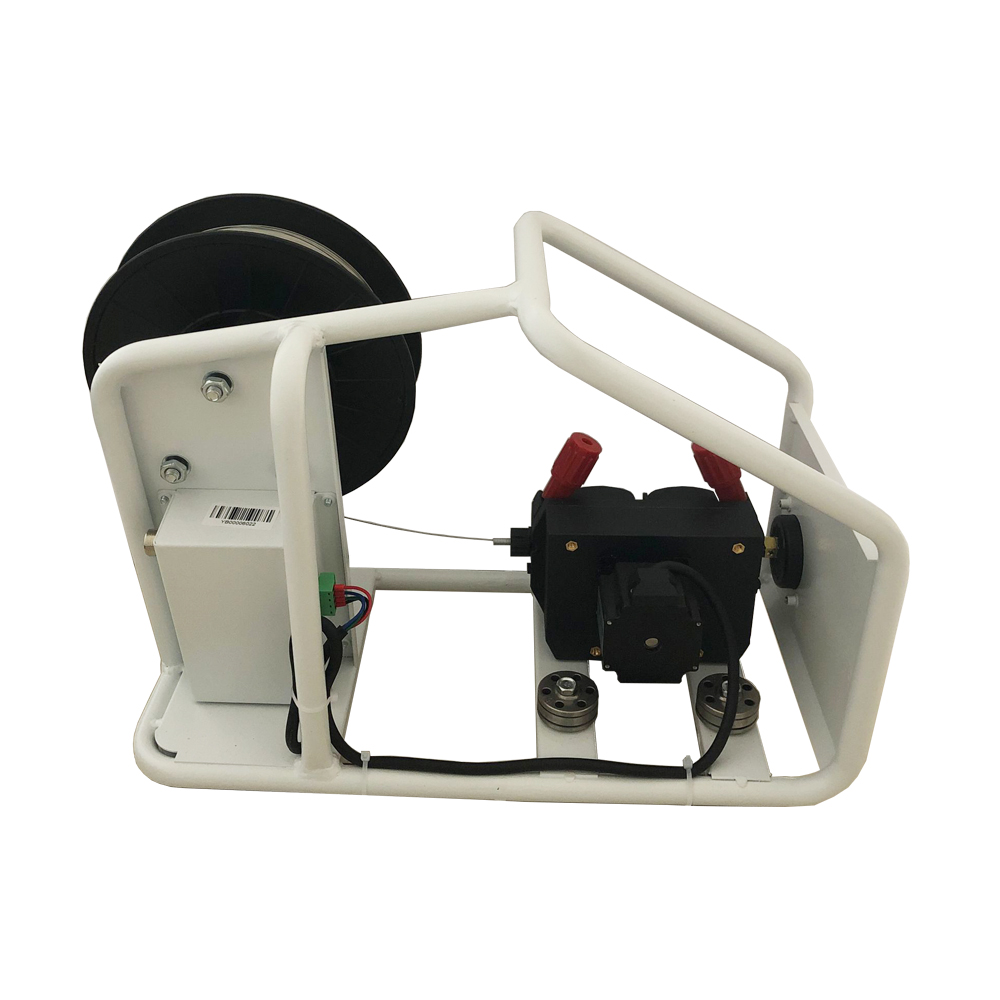

Wire feed mechanism The machine with automatic wire feeding. The light spot can be adjusted and the max wire diameter can reach 1.6mm. | ![]() |
Welding head Lightweight and flexible, 3 in 1 welding, cleaning and cutting | ![]() |
Samples
![]() |
