Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed

    Buy cheap Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed from wholesalers

    Buy cheap Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed from wholesalers
    • Buy cheap Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed from wholesalers

    Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed

    Ask Lasest Price
    Brand Name : Questt
    Model Number : QA-FL1000V
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2110 sets / year
    Delivery Time : 19 days
    • Product Details
    • Company Profile

    Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed

    Fiber Laser Welding Machine 1000W Lazer Soldering For Metals Fast Speed

    Descriptions

    1.Latest generation of fiber laser, self-developed wobble/common welding gun with safety sensing function and adjustable weld seam width;

    2.Easy welding of large objects over long distances, and hard-to-reach places;

    3.High strength and fine weld seam, no need for polishing, no consumables, no deformation; 4.3-10 times the speed of conventional argon arc welding plasma welding;

    4.Power consumption is 10-20% less than traditional process, save 2-3 labor costs; 6.Simple operation, long service life.

    7. The air-cooling compact design is easy to be integrated to automated production line.


    Specification

    ModelROBOT-FL1000V
    Output Power1000W
    Laser Wavelength1064nm
    Laser welding Depth≤5mm depending materials
    Focus Spot0.1-3.0mm
    Red Light Spot0.2-3.0mm
    Power Max10KW
    Laser Power Supply380V/3 phase/50Hz/40A
    Max Weight load≤200Kg
    Worktable Runining distance200*200mm to 1200*1200mm
    Repeat Precision±0.01mm
    Position Precision±0.02mm
    Position SystemRed light, CCD and Optional Rotary
    Laser CoolerWater Cooling
    Dimension1600*800*1800mm
    Machine Weight500kg

    Application
    For kettle, vacuum cups, stainless steel bowls, door handles, electrical parts, filters, nozzles, stainless steel products, golf head, zinc alloy crafts such as welding. Can be welded graphics are: point, line, circle, square, or by the AUTOCAD software to draw any graphics, may be welded three-dimensional trajectory.

    Welding sample


    FAQ

    Q: What’s the package?
    A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

    Q: How to install and run the machine?
    A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine.

    Q: How can I do if the machine goes wrong?
    A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can.

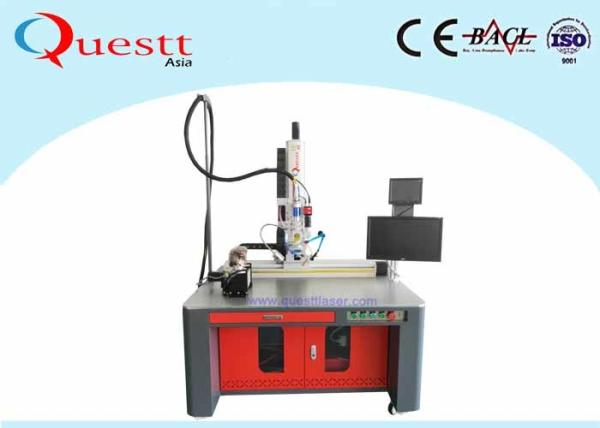

    Machine outlook
