50W Handheld Laser Cleaning Machine For Graffiti Removal on Wall
Description:
QA-LC50B is a Handheld Laser Cleaning Machine for outdoor cleaning job which can carry on shoulder. Great to wrok
outside, like graffiti on buliding walls, tower etc.
Total weight is only 20kgs, good to carry on shoulder for working
long time.
For some outdoor cleaning cleaning work, it is not easy to take
along a big machine, or even work in air on a platform. So backpack Handheld Laser Cleaning Machine is the best choice. Easy to carry and operation.
Many people like to use spray paint to make graffti, so such
machine is very useful.
There is oxidation and corrosion when metals meet oxygen and water
vapor in air. It will greatly damage the metal workpiece and the
rust will spread from outside to inside and become worse and worse
as time goes on, until the whole workpiece is totally corrupted. So
rust removal is extremely important.

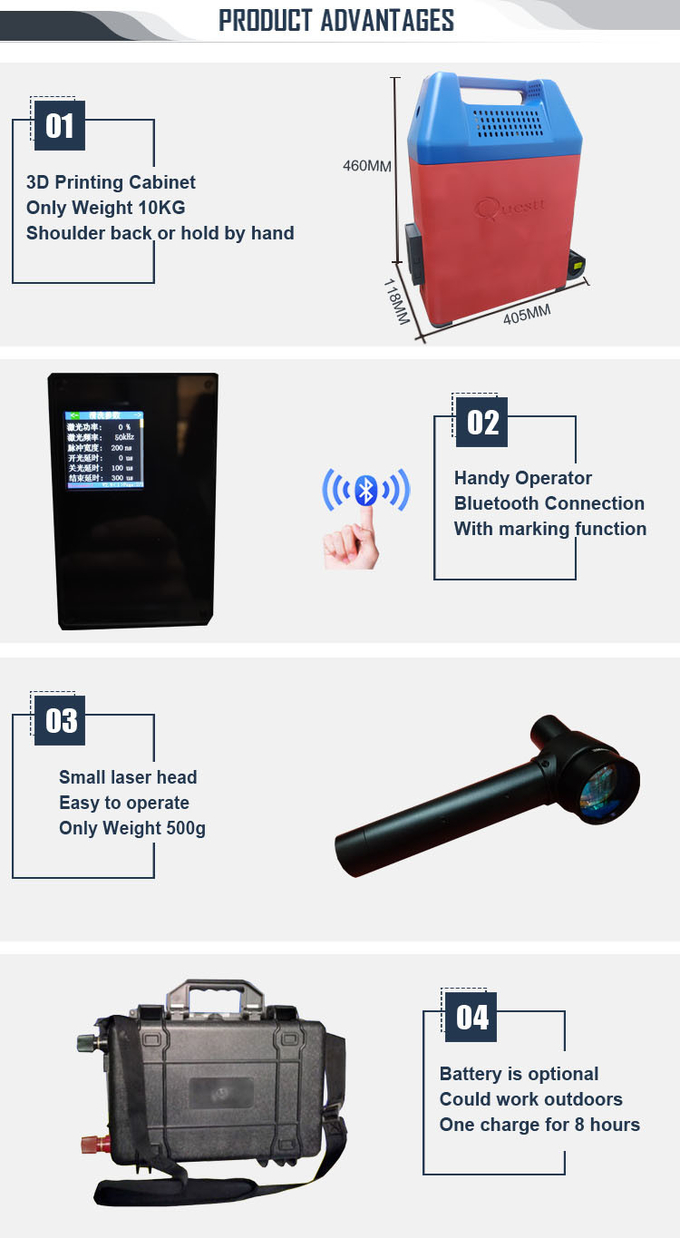

Product features:
1. Free to wrok outdoor;
2. Suitable for the removal of different materials;
3. Different languages to choose;
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;.
7. Easy to operate,
8. Convenient to work in air on platform
9. Phone App controller with time counter
Specifications:
Backpack
Laser Rust Removal Machine HQ.pdf
| Model | QA-LC30B | QA-LC50B | QA-LC100B |
| Laser source | Fiber | Fiber | Fiber |
| Laser Power3 | 0W | 50W | 100W |
| Fiber cable length | 2 meters | 2 meters | 2.5 meters |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Pulse Energy | 0.6 mJ | 1 mJ | 1.5 mJ |
| Pulse frequency | 30-60KHz | 1-2000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling |
| Dimension | 400*180*450 mm | 400*180*450 mm | 500*200*550 mm |
| Weight | 18Kg | 20Kg | 36Kg |
| Beam width | 10-70mm | 10-70mm | 10-100mm |
| Optional | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50/60HZ | Single Phase AC 220V,2.5A | Single Phase AC 220V 4.5A |
Comparison with traditional cleaning methods:
| Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator.
Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost.
|
Application:
Handheld Laser Cleaning Machine used in : air plane and ship metal surface derusting , paint removal;
building surface dirt cleaning;
chip surface cleaning of micro electricy
FAQ
1 Q: What is the warranty of the Handheld Laser Cleaning Machine?
A: The warranty is 2 years, but we offer whole life after-sale
service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service, using online chatting tools like Whatsapp to talk
with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate
the machine.
We can also send engineers to your factory for training. Or you can
send worker to gain training in our factory directly.
