100 Watts Laser Rust Removal Machine CE Certificate Pulse fiber
Laser Cleaner
Description:
QA-LC100 is a 100W hand held type fiber laser rust removal machine.
This is a tigger on gun.
There are 4 wheels on the bottom, so the machine can move freely on
floor, the weight is only 36kgs, you can also take up by hand
easily. Very convenient for transport.
Laser rust removal machine is a new generation of industrial
surface cleaning laser system. It adopts the advanced laser source,
laser optical scanners and control system to meet the requirements
of metal surface cleaning process. It can be customized according
to customer requirements to develop a dedicated cleaning system.
Contaminant:
The bonding force between the contaminant and the surface is mainly
covalent bond, double dipole, capillary action, hydrogen bond,
adsorption force and electrostatic force. Among them, capillary
force, adsorption force and electrostatic force (Figure below) are
the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric
humidity) in the particle and the surface of the primary layer and
the small gap between the cohesion; adsorption force is the main
adhesion of micron pollutants
Product features:
1. Laser cleaning has no grinding, non-contact, no thermal effect
and suitable for various materials, etc.
2. Rapid, clean and accurate cleaning, removal of surface coatings,
coatings, oxide;
3. No damage to substrate;
4. High cleaning precision, strong controllability
5. Can be used for a long time, low operating costs;
6. The device can realize automatic operation and simple operation;
7. Environmentally friendly, no supplies, no two pollution
Comparison with Traditional Clean Methods:
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder | Dry Ice |
| Result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator.
Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Specifications:
Introduction of Laser Cleaning
Technology A.pdf
| Model | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 3 M | 15M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 1.5-10 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 50-500KHz | 1-1000KHz | 1-2000KHz | 2-50KHz |
| Clean speed | ≤8 M²/Hour | ≤12 M²/Hour | ≤20 M²/Hour | ≤60 M²/Hour |
| Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
| Dimension | 450*300*500 | 650*350*560 | 800*450*1000 | 900*800*1300 |
| Weight | 30Kg | 36Kg | 90Kg | 300Kg |
| Beam width | 10-110mm | 10-110mm | 10-110mm | 10-110mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Power | <1 KW | < 2KW | < 4KW | < 6KW |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ
|
Principle:
1 in the solid surface to produce a mechanical resonance
phenomenon, is the surface of the dirt layer or condensation
debris;
2 the surface dirt layer is heated and expanded, so as to overcome
the adsorption force of the basic material to the dirt particles
and the surface of the object is separated from the surface of the
object;
3 instant to make the dirt molecules evaporate, gasification or
decomposition
Application scope:
Industries: air plane and ship metal surface derusting , paint
removal; building surface dirt cleaning; chip surface cleaning of
micro electricy

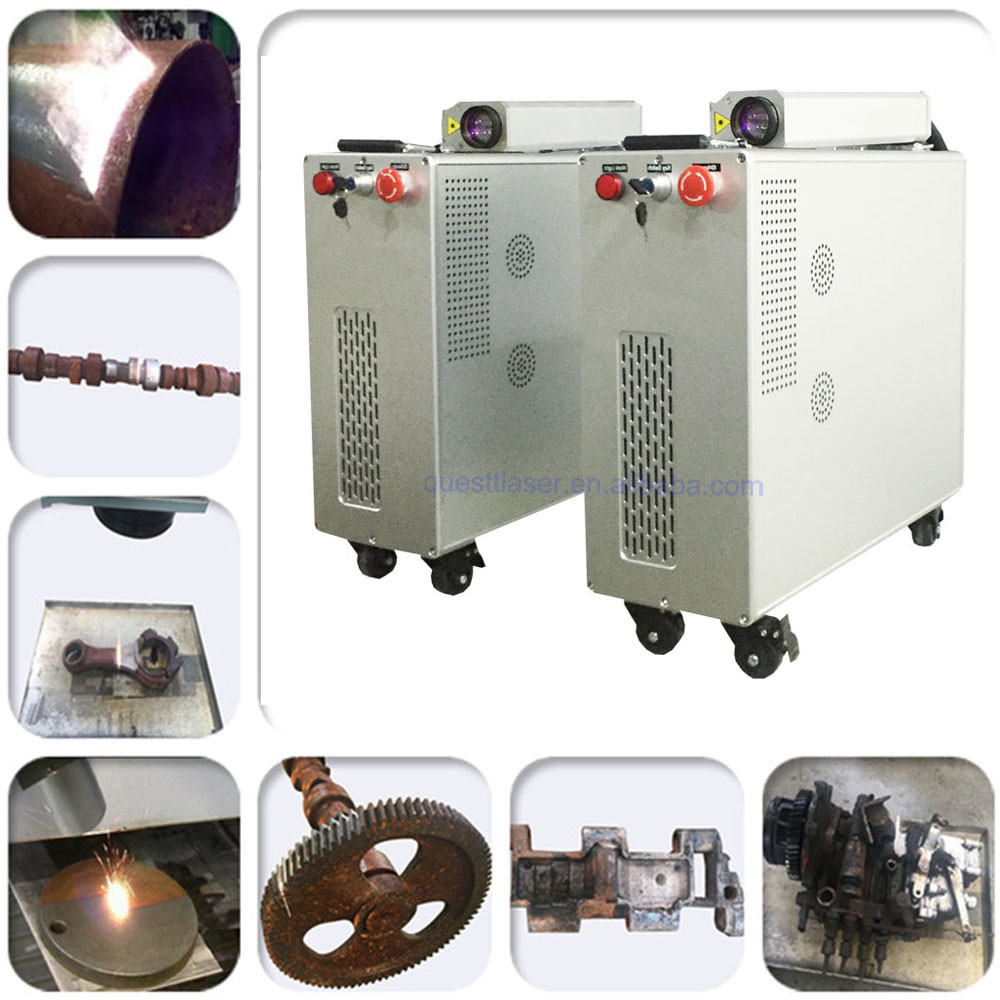

Machine outlook with sample:
FAQ:
1 Q: What is the warranty of this laser rust removal machine?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service for little problems, using online chatting tools
like Whatsapp to talk with customers directly for all questions .
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate
the machine.
We can also send engineers to your factory for training. Or you can
send worker to gain training in our factory directly.
