LCE Certificate Laser Rust Remover Machine For Cleaning Paint Oxide
Description:

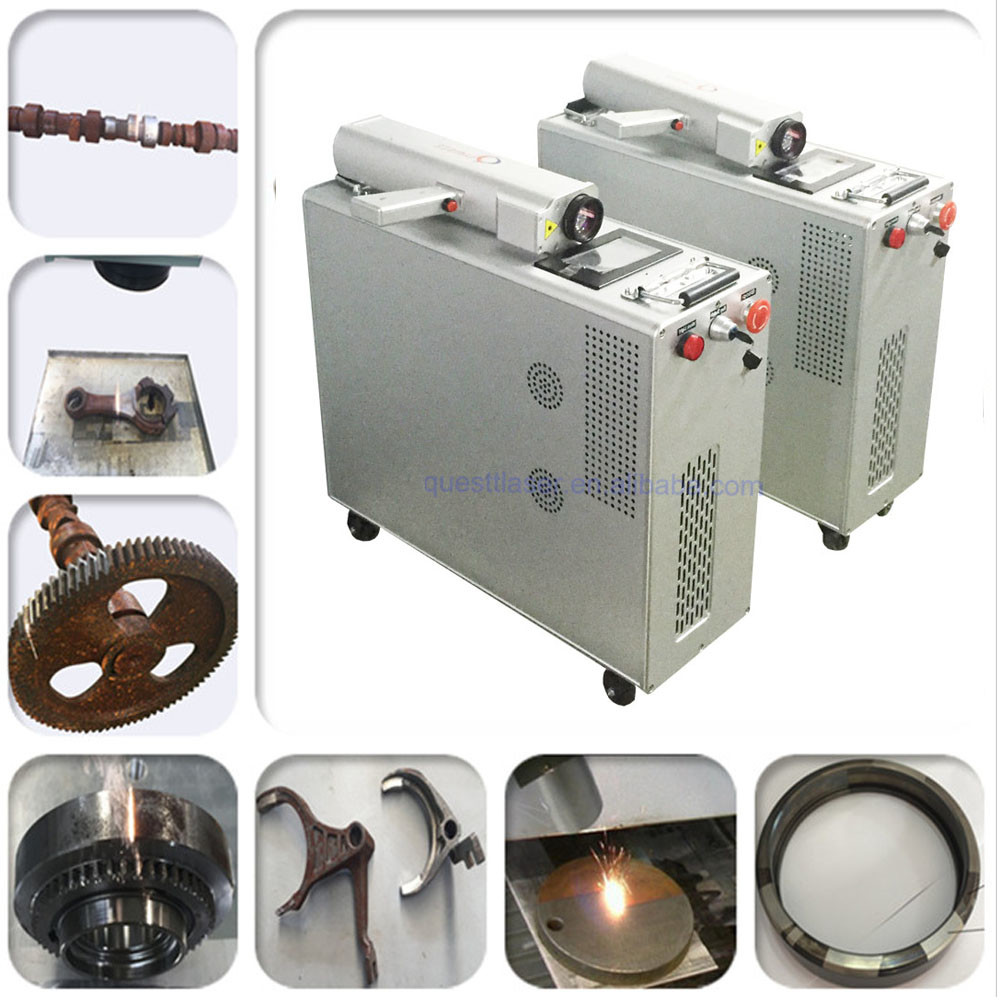

QA-LC100 adopt a 100W Mopa fiber laser source for surface cleaning.
There is oxidation and corrosion when metals meet oxygen and water
vapor in air. It will greatly damage the metal workpiece and the
rust will spread from outside to inside and become worse and worse
as time goes on, until the whole workpiece is totally corrupted.
Laser cleaning can remove rust and contaminant in weapons with high
speed and high efficiency. The cleanliness is much higher than
chemical cleaning and with no damage to body surface. And a compact
oxide coating and molten metal layer can be formed on body surface,
which can improve surface strength and corrosion resistance
Product features:
1. Different languages to manipulate the friendly interface;
2. Laser pulses are very suitable for the removal of organic
matter, ;
3. Diffreent language to choose from,
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;
7. High cleaning efficiency and safety.
8. Automated cleaning by hand-held or work with manipulator, easy
to operate,
9. Phone App Controller with Bluetooth
Specifications:
Laser
Cleaning Machine Rust Removal.pdf
QA-LC100
Laser Cleaning Machine for rust removal.p...
Model | QA-LC50 | QA-LC100 | QA-LC200 | QA-LC500 |
Laser source | Fiber | Fiber | Fiber | Fiber |
Laser Power | 50W | 100W | 200W | 500W |
Fiber cable L | 3 M | 3 M | 5 M | 15M |
Pulse Energy | 1 mJ | 1.5 mJ | 2 mJ | 50 mJ |
Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
Frequency | 1-2000KHz | 1-2000KHz | 1-2000KHz | 10-50KHz |
Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
Dimension | 450*350*500 | 650*250*560 | 900*450*1000 | 1100*600*1100 |
Weight | 30Kg | 40Kg | 90Kg | 230Kg |
Beam width | 10-110mm | 10-110mm | 10-170mm | 10-170mm |
Optional | Manual | Manual | Manual | Manual |
Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Comparison with traditional cleaning methods:
| Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator.
Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost.
|
Application scope:
Space flight and aviation/ships, automobile/machine manufacturing,
mould/hardware tool, food processing/chemical industry, rubber and
plastic/tyre, electronics/electrical equipment, weaponry, building
materials/cultural relic, steel structural parts, rail
transit/machine tool, etc.
Removal for rust, oil stain, grease, dirt, resin, mold release, oil
paint, coating, weld residue, oxide, production residue etc.
FAQ
1 Q: What is the warranty of the 100W laser rust removal machine?
A: The warranty is 2 year, but we offer whole life after-sale
service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service, using online chatting tools like Whatsapp to talk
with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate
the machine.
We can also send engineers to your factory for training. Or you can
send worker to gain training in our factory directly.
