Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine

    Buy cheap Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine from wholesalers

    Buy cheap Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine from wholesalers
    • Buy cheap Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine from wholesalers
    • Buy cheap Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine from wholesalers
    • Buy cheap Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine from wholesalers

    Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine

    Ask Lasest Price
    Brand Name : QUESTT
    Model Number : QA-LC200
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1890 sets per year
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine


    Laser Rust Removal Machine For Cleaning Remove Oil/Rust/Paint/Graffiti on Car,Ship,Wall​

    Description:

    QA-LC200 is a 200W Mopa fiber laser cleaning machine for rust/paint removal. The pulse width can be adjusted from 1-400ns, so it can make precision cleaning, like mold and stainless steel.


    Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;

    The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;

    Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;

    Improve the bonding of welding surface pretreatment;

    New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;


    Laser rust removal using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.

    Product features:

    1. Fast and concentrated pulses (1/10000 second) with enormous power (well dozens of of Mio. W) impact and gasification of residues on the surface;

    2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;

    3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.

    4. Clean or remove the surface paint layer quickly and cleanly;

    5. Accurate cleaning and paint removal effect;

    6. No damage to the base material;

    Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine
    Comparison with traditional cleaning methods:


    ComparisonsLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
    Methodsnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
    Harm to base materialNoneYesYesNone
    EfficiencyHighLowLowMid.
    ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
    Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
    Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
    Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
    OperationEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
    InvestmentHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.

    Specifications:
    QA-LC200 Laser Cleaning Machine for rust removal.p...
    Introduction of Laser Cleaning Technology A.pdf

    ModelQA-LC50QA-LC60QA-LC100QA-LC200QA-LC500
    Laser sourceFiberFiberFiberFiberFiber
    Laser Power50W60W100W200W500W
    Laser Wavelength1060nm1060nm1060nm1060nm1064nm
    Pulse frequency20-100KHz20-100KHz20-100KHz1-2000KHz2-50kHZ
    CoolingAirAirAirairWater chiller
    Dimension760*780*790mm800*450*1000mm950x880x1200mm
    Weight30Kg40Kg40Kg90Kg200kgs
    Scanner width10-110mm10-110mm10-110mm10-170mm10-170mm
    OptionalManual/Automation/Customers
    Temperature5-40 ℃5-40 ℃5-40 ℃5-40 ℃5-40℃

    Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine





    Application field:

    Components combination, welding surface pretreatment, metal surface stripping (all surface paint or designated parts off paint) and a variety of industrial products or molds cleaning


    Rust removal:

    High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.


    Sample details:
    Fiber Laser Rust Removal Machine For Cleaning , Laser Metal Cleaning Machine

    FAQ

    1 Q: What is the warranty ?
    A: The warranty is 2 years, but we offer whole life after-sale service.

    2 Q: What is your payment term?
    A: T/T, L/C, Westen Union, etc.

    3 Q: What is your after-sale service?
    A: Engineers can offer oversea services and we can also offer online service.

    4 Q: How is the operation of the machine?
    A: We offer operation manual and videos, show you how to operate the machine.
    We can also send engineers to your factory for training.

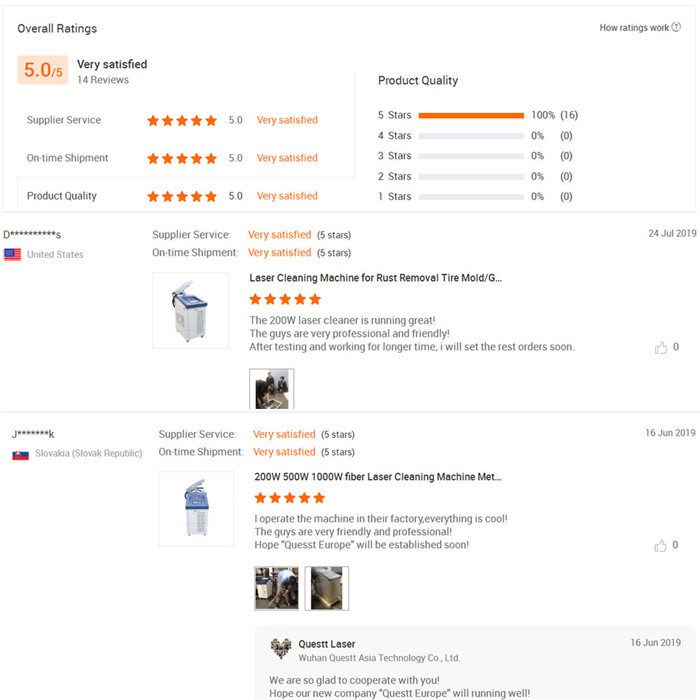

    5 Stars Review from customer, really high quality:
