1000W Precise Fiber Laser Cutting Machine For Metal Sheet

    Buy cheap 1000W Precise Fiber Laser Cutting Machine For Metal Sheet from wholesalers

    Buy cheap 1000W Precise Fiber Laser Cutting Machine For Metal Sheet from wholesalers
    • Buy cheap 1000W Precise Fiber Laser Cutting Machine For Metal Sheet from wholesalers
    • Buy cheap 1000W Precise Fiber Laser Cutting Machine For Metal Sheet from wholesalers

    1000W Precise Fiber Laser Cutting Machine For Metal Sheet

    Ask Lasest Price
    Brand Name : Questt
    Model Number : QA-FL1000P
    Certification : ISO , CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3910 sets / year
    Delivery Time : 5 - 21 days
    • Product Details
    • Company Profile

    1000W Precise Fiber Laser Cutting Machine For Metal Sheet

    1000W Precise Fiber Laser Cutting Machine For Metal Sheet


    Overview


    QA-FL1000P Precise fiber laser cutting machine Adopt a 1000W fiber laser source.Mini cabinet to save shipping cost.

    The control system is CNC. The laser cutter has equipped with a sealed working table to protect the workers when operate the machine.

    The laser cutter machine can reach Europen safety standard. Best choice for high safety request customers.

    Laser iber laser cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

    The iber laser cutting machine is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text.


    Parameter datas

    Laser output power1000W
    Laser wavelength1080 nm
    Laser mediumGlass fiber with rate-earth element
    Repeat accuracy±0.01mm
    Max cutting speed18m/min
    Max cutting thickness3-6mm according to material
    Output energy regulating10%~100%
    Input electric power for laser≤2KW
    Type of coolingWater cooling
    Drive modeImported servo motor
    Transmission modeImported high precision Rack and Pinion
    X Y axis movement600mm×600 mm (Optional: 200x200mm,300x300mm,400x400mm,500x500mm)
    Z axis movement100mm
    Power supplySingle phase 220V/50HZ
    Contour dimension1900mm×1550 mm×1800 mm
    Weight800kg

    Samples

    1000W Precise Fiber Laser Cutting Machine For Metal Sheet

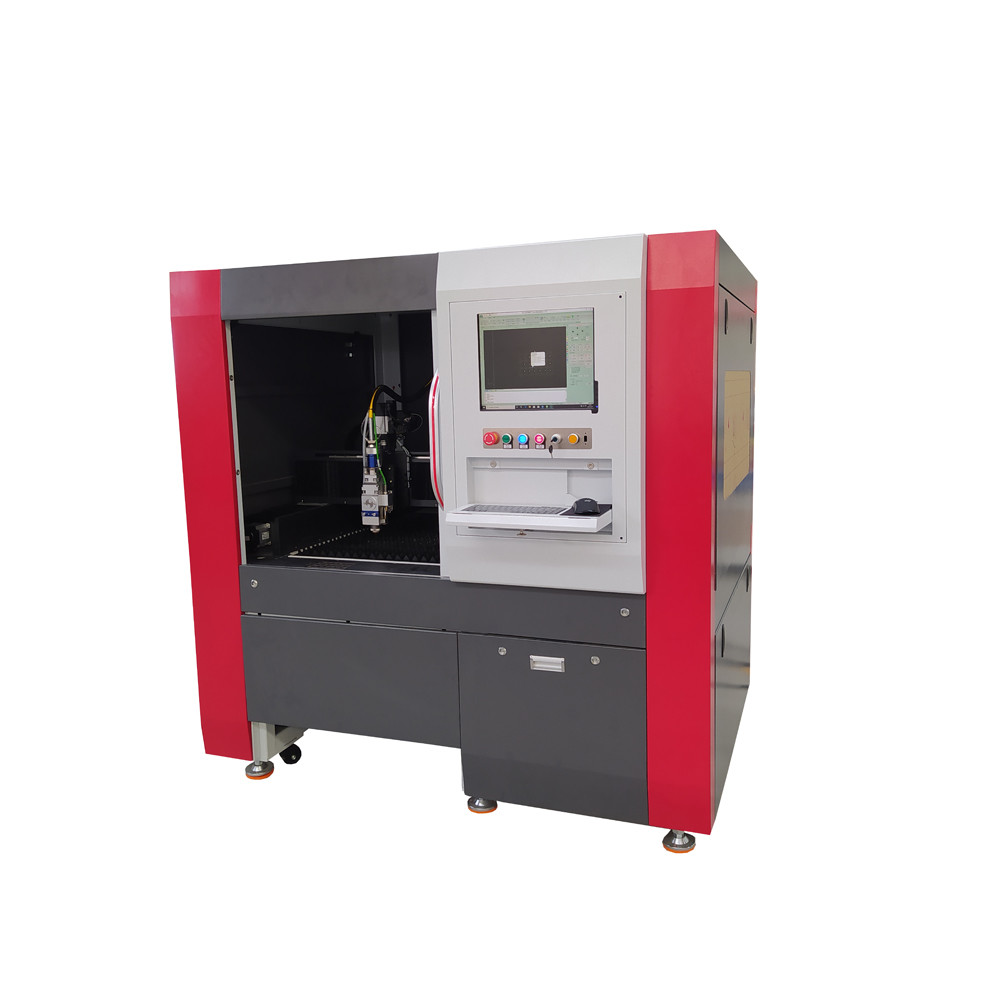

    Machine outlook

    1000W Precise Fiber Laser Cutting Machine For Metal Sheet

    FAQ


    1 Q: What is the warranty of the laser cutting machine?

    A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.

    2 Q: What is your payment term?

    A: T/T, L/C, Westen Union, etc. Any payment term you prefer.

    3 Q: What is your after-sale service?

    A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.

    4 Q: How is the quality of the machine?

    A: High quality. Price is reasonable.

    5 Q: What is the brand of laser source?

    A: Raycus or Max.
