500W 1000W High Precision 0.005mm Fiber Laser Cutting Machine for
metal
Introduction
Small High precision laser cutting machine has the characteristics
of high precision and small size,use the aviation aluminum
beam,adopt the motor and guide rail of international famous
brand.It is suitable for stainless steel, carbon steel, copper,
aluminum.
Features
1. High-performance laser source with good beam quality, high power
stability;
2. Professional cutting software, multi-level authority operation,
convenient for production management
3. Application of gantry structure and integrated cast cross-girder
to achieve higher rigidity, stability, shock resistance.
4. X,Y axis Liner motor and Guider for precision cutting.
5. The cutting precision of the whole machine is ±25um, the
equipment stability is high, CPK>1.33.
7.The software has graphics nesting and sharp corner smoothing
processing functions, which can realize high-speed cutting,
punching, and marking functions.
8.The optical path of the whole machine is conducted by optical
fiber, the external optical path is maintenance-free, and the
consumption of easy loss is very small.
Parameter datas
Technical Data Sheet
| Laser Cutting Machine Model | QA-FL500 |
Raytool Laser Head
| Model | BM109 FC |
| Focal length of collimator | 100mm |
| Focal length of focusing lens | 125mm, 150mm |
| Autofocus | Yes |
| Autofocus Range | + 8 ~ - 9mm |
| Autofocus Acceleration | ≤ 10m / S ² |
| Autofocus Speed | ≤ 6m / min |
| Autofocus Accuracy | ≤ 50 μ m |
| Nozzle hole specification | single layer, double layer, non-standard |
| Optical fiber interface | QBH, QD |
| Nozzle aperture | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm,
4.5mm, 5.0mm |
| Focusing aperture | 26mm |
| Collimating protective mirror | φ 24.9mm*1.5mm |
| Focusing protective lens | φ 27.9mm*4.1mm |
| Auxiliary gas pressure | ≤ 25bar |
| Weight | 3kg |
IPG Laser Source | Fiber cable length | 10M |
| Fiber core | Round |
| Fiber core size | 50um |
| Laser Power | 500W |
| Frequency | 0-50KHz |
| Wavelength | 1070 ±10 nm |
| Central Wavelength Accuracy, nm | ±1 |
| Mode of operation | CW/modulated |
| Power Tunability, % | 10-100 |
| Power Stability, % | ±2 |
| Optical Noise, % RMS | <2 |
| Polarization | Linear, > 50:1 |
| Beam Quality, M2 | <1.1 |
| Cooling | Air |
| Laser dimension | 448 × 502 × 266 |
| Laser Weight | <50 KGS |
| Supply Voltage, single-phase 50 - 60 Hz | 200 - 240 |
| Power Consumption, W | 1500 |
X,Y axis | Liner motor | Taiwan Hiwin |
| Guider | Taiwan Hiwin |
| Grating ruler | Renishaw 0.5μ m |
Cabinet | Table | Marble table |
| Machine Size | 1900x1450x1705mm |
| Net weight | 800kg |
| Gross weight | 1000kg |
Samples

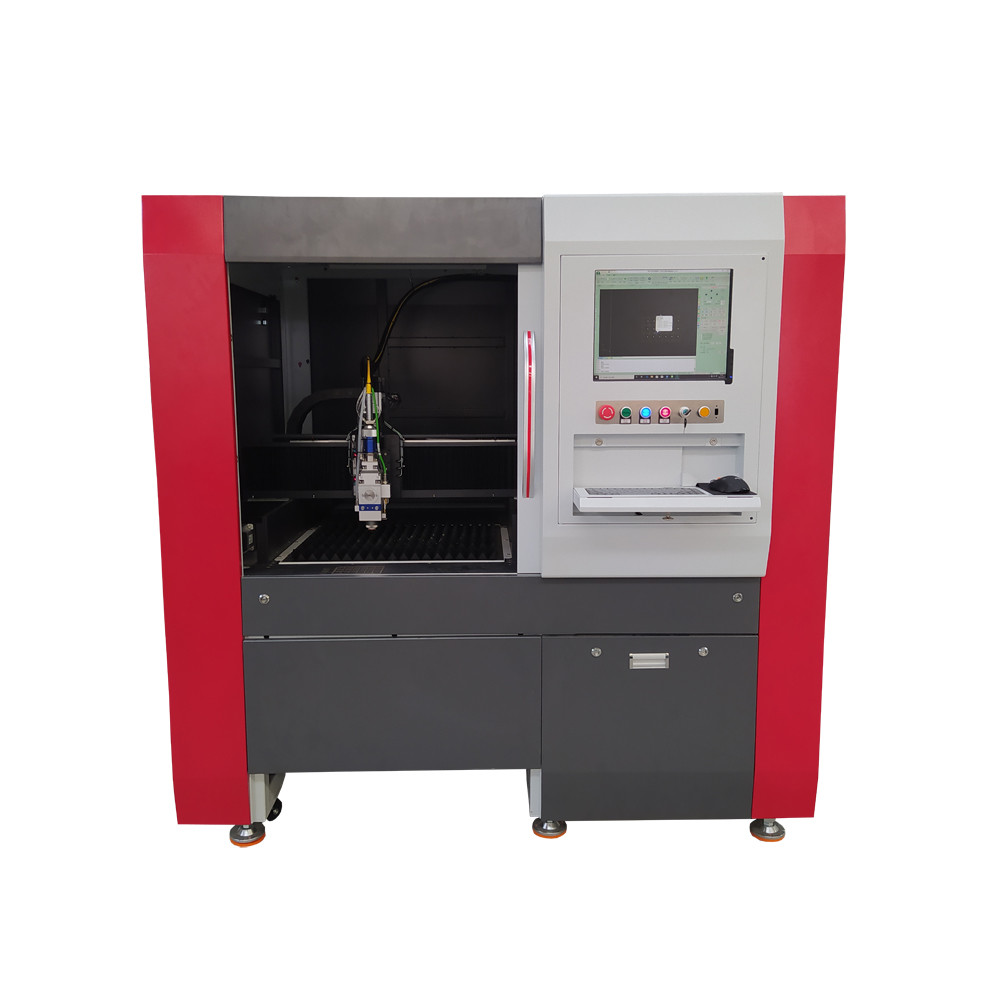

Machine outlook
FAQ
1 Q: What is the warranty of the precision fiber laser cutting
machine?
A: The warranty is 2 years, but we offer whole life after-sale
service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service, using online chatting tools like Whatsapp to talk
with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
