200w 1000w Fiber Laser Cleaning Machine Hybrid Fast Speed with Cheap Price

Description:

QA-LC200-1000C adopt a 200W pulsed fiber laser source and a 1000W continuous fiber laser source. We call it hybrid laser cleaner or composite cleaning.

The fiber laser power range from 200W to 2000W. The final price also depends on the laser power.

The advantage are that the continuous laser and pulsed laser are functionally composited at the same time to form a processing characteristic of 1+1>2.

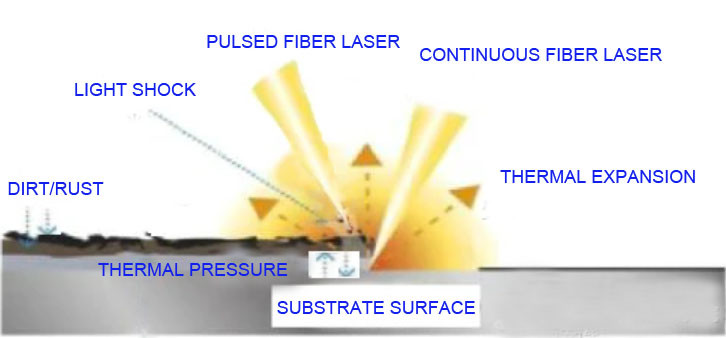

The principle is mainly through the semiconductor continuous laser as the heat conduction output, so that the attachment to be cleaned absorbs energy to generate vaporization and plasma cloud, and forms a thermal expansion pressure between the metal material and the attachment, reducing the bonding force between the two layers.

When the pulsed laser outputs a high-energy pulsed laser beam, the generated vibration shock wave will cause the attachments with weak binding force to be directly separated from the metal surface, thereby realizing rapid laser cleaning.

Characteristic:

1. Better to clean thicker coating materials. Due to the large energy output of a single laser with multiple pulses, the high cost of high-power pulsed lasers limits the laser cleaning of thick coating materials, and the use of pulsed laser-semiconductor laser composite cleaning can quickly and effectively improve the cleaning quality, and the substrate is not easy Causes damage, so it is suitable for cleaning thicker coating materials.

2. Better cleanhigh reflective materials such as aluminum alloy. Single laser cleaning aluminum alloy and other surface oxide layers has problems such as high reflectivity. However, pulse laser-semiconductor laser combined cleaning, due to the thermal transmission of semiconductor laser, increases the energy absorption rate of the metal surface oxide layer, making the pulse laser The beam can peel off the oxide layer faster, thereby more effectively improving the removal efficiency.

Specifications:

Train axle wheelseat cleaning:

Application scope:

The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;

Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;

FAQ

1 Q: What is the warranty of hybrid laser cleaning machine?

A: The warranty is 2 years. Offer wholelife aftersales service.

2 Q: What is your payment terms?

A: Any payment terms is acceptable.

3 Q: What is the service of your company?

A: Engineers can offer oversea services and online service.

4 Q: How is the operations?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training.The operation is easy to learn.

5 Q: What is the brand of laser?

A: IPG laser source from Germany.
