500W IPG Fiber Laser Texturing Machine System
Overview
QA-TE500S laser texturing machine system include fiber laser, control system and the domestic CNC
controller. The fiber laser device is imported with high quality
from Germany IPG. Laser power is 500W.
The laser texturing machine can realize roll roughen during the processing, make the roll
surface disordered pits, which can meet a variety demand of surface topography.
Laser disordered roughen technology for the world first Independent research and development, and has a number of
technology patents.
At present, the system have choices based on laser and roughen head
number, we have single head and double head according to the
requests of customers.
Alternative to conventional shot peening roughen, edm roughen,
other laser roughen orderly.
Features
1. The system integration higher, control precision is higher and stability reliable;
2. The operation is simple and efficient;
3. The equipment operation cost is low;
4. High processing quality, energy savd;
5. Laser roughen processing good uniformity, high repeatability,
morphology, no pollution, low energy consumption, low noise
6. Lifetime is more than 100,000 hours without failure.
7. Texturing process can be set according to the requirements
settings.
8. Roll surface roughness range of 0.05 ~ 15.0μm.
Specification
| Model | QA-TE500S |
| Laser type | Imported Fiber laser |
| Output laser power | 20-500W |
| Laser frequency | 5-100KHZ |
| CNC system | Siemens or others |
| Roller diameter | 200-650mm |
| Working length | 0-5.3m |
| Texturing index | Ra=0.5-15um |
| The axial line density | 3-100 points/mm |
| The radial line density | adjustable |
| Small hole diameter | 50-90um |
| Small hole convex platform hardness | HV>800 |
| Small hole convex platform height | 2-25um |
Laser texturing head
The laser texturing device is composed of a large carriage, a small
carriage, a focusing mirror and a detecting device. There are 2
sets of laser processing heads on the texturing head, 2 sets of
manual focus adjustment devices, and each focus axis is equipped
with a nitrogen side blowing device.
1 Large pallets Designed with a dedicated CNC roll texturing machine.
2 Small carriages Set on the large carriage, the transverse AC
servomotors are driven laterally by two pairs of anti-backlash
gears and transverse ball screws.
3 Focusing mirror and detecting device are all installed on the
small carriage. The detection device is driven by the AC servo motor through the ball screw for linear motion.
4 Feed box: Designed with special CNC roll texturing machine.
Small pit surfaces of the laser Texturing steel sheets are not connected to each other, which is advantageous
to oil and capture metal debris with stamping, prevent punching, to
ensure the surface of the stamped parts, while reducing the amount
of stamping oil. Deep punching performance is more excellent
compared to processing techniques such as electric fire.
Application
Areas of application:
Steel, aluminum, titanium plate, etc.
Typical application:
Cold roller roughen processing, meet the temper mill, light
machine, rolling mill, rolling mill roll after roughen the demand
of various kinds of work roll.

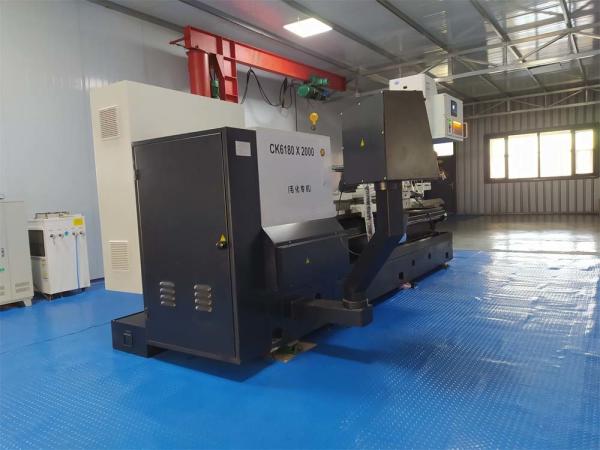

Machine overview
