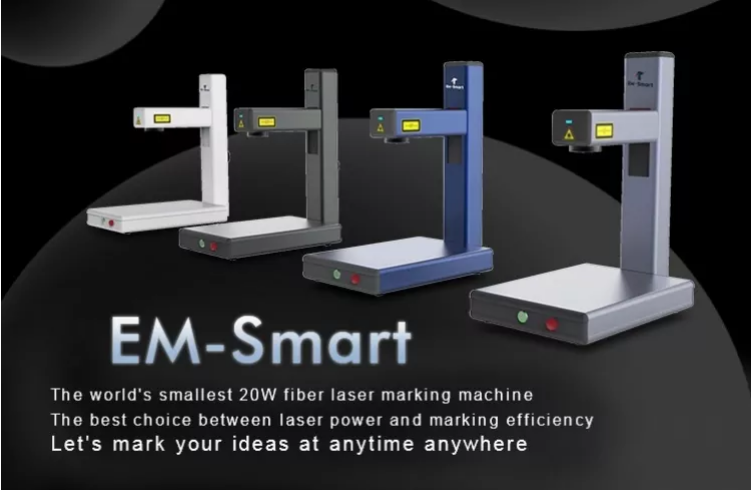

High efficiency raycus mini software ezcad wuhan 20w 30w 50w fiber laser marking machine

FEATURES

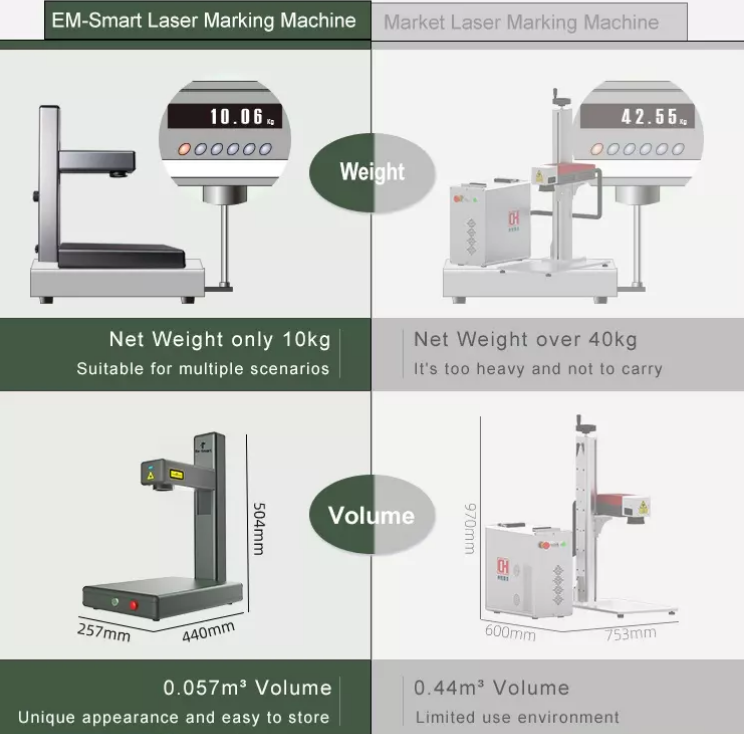

* Easily Carried - Net weight 10kg
* Compact Design - Dimension 505mm x 260mm x 440mm
* Plug and Run - Uni-body design, installation-free
* Safety - Fiber wire inside integrated, Protection cover optional
* Artwork Appearance - Deep customization with Raycus, JCZ and Sino-Galvo to be small enough in the body
* CE passed

Machine details

Advantages

Parameters

Model	EM-Smart
Laser Type	20watt Fiber Laser (Raycus)
Work Area	110mm * 110mm
Laser Wavelength	1064nm
Marking Speed	≤7000mm/s
Repeat Accuracy	±0.01mm
Minimum Character	0.1mm
Frequency Range	30-60kHz
Operation Temperature	15℃ - 35℃
Cooling Method	Air Cooling Integrated with Fiber Laser Source
Power Supply	AC 110v - 240v, 50Hz / 60Hz
Power Consumption	≤120W
PC Connection	USB Wire
Software	EZcad 2 from Beijing JCZ
Software Language	English / Japanese / Korean / Chinese
Power Outlet Type	US, UK, EU, CN, etc.
Machine Color	White / Blue / Dark Green / Dark Gray
Machine Net Weight	10KG
Machine Dimension	260mm(L) * 440mm(W) * 505mm(H)

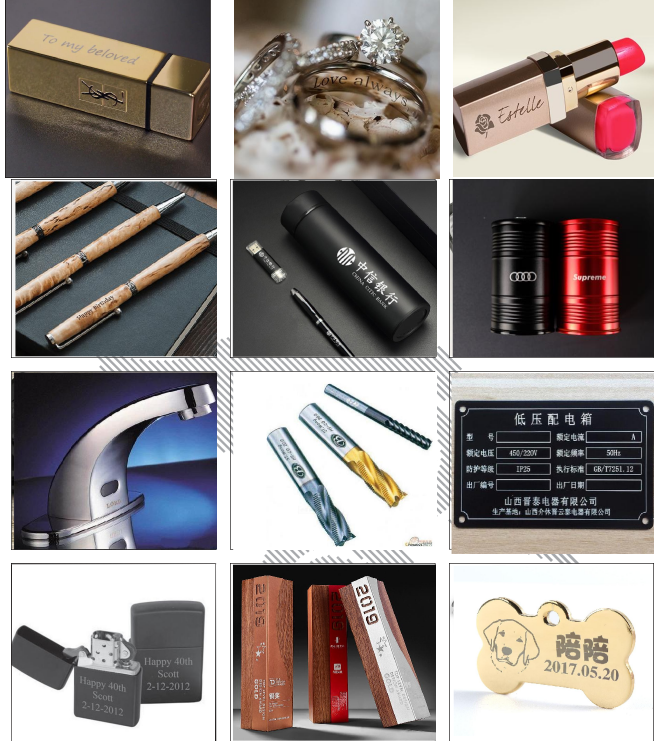

Samples

Suitable Materials
* Stainless steel
* Steel and hard metals
* Aluminum and anodized aluminum
* Precious metals
* Brass
* Copper
* Titanium and titanium alloys

* Poly amide (PA)
* Polycarbonate (PC)
* Acrylonitrile butadiene styrene copolymer (ABS)

Package
