Product Description:

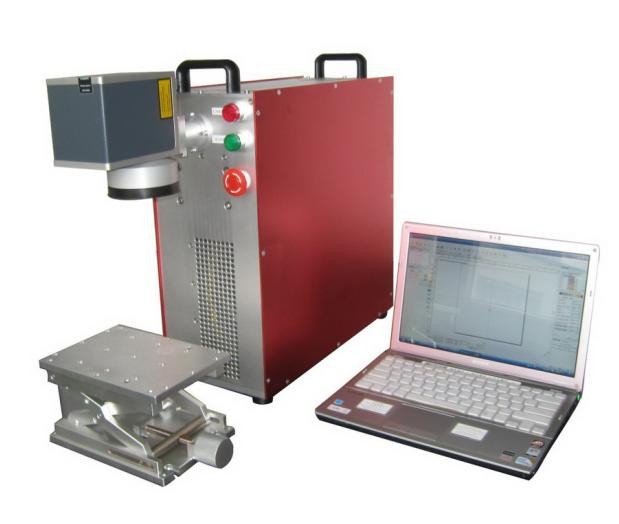

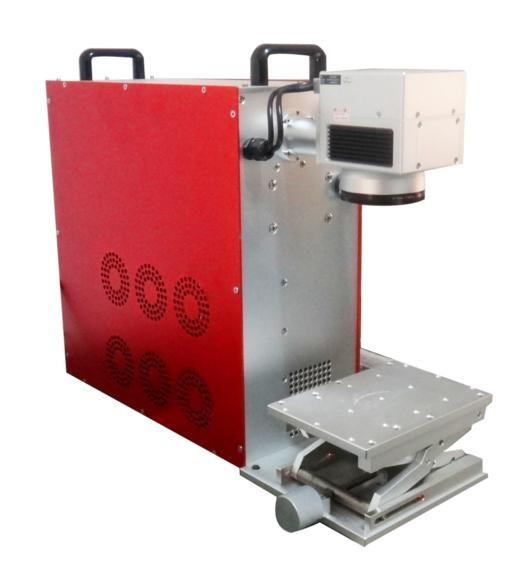

The Fiber Laser Marking Machine is an industrial-grade laser engraver that is designed to offer a
high level of precision and accuracy while also reducing power
consumption. It utilizes a 20W UV laser with a wavelength of 1064nm, a 165mm focus lens, and a Laser Power of 20W/30W/50W to provide perfect accuracy and precision. Its all aluminum sandblasting oxidation material ensures its durability and longevity. It is an ideal
solution for industrial laser engraving and marking applications
with its excellent performance and low power consumption of 400W.
Features:
- Product Name: Fiber Laser Marking Machine
- Humidity: ≤95
- Production line speed: 0~130m/min (depending On The Material)
- Laser wavelength: 1064nm
- Marking range: 110mm×110mm(optional)
- Overall dimension: Nose:500mmX103mmX110mm Control
Box:416mmX170mmX267mm
- 20w UV Laser
- UV Laser Engraver
Technical Parameters:
| Parameter | Detail |
|---|
| Marking Speed | ≤12000mm/s |
| Marking range | 110mm×110mm(optional) |
| Net weight of machine | 28kg |
| Machine material | All Aluminum Sandblasting Oxidation |
| Minimum linewidth | 0.012mm |
| External temperature | 0℃－45℃ |
| Focus lens | 165mm |
| Power consumption | 400W |
| Laser wavelength | 1064nm |
| Laser Power | 20W/30W/50W |
Applications:
The Questt QA-OFLM20 Fiber Laser Marking Machine is an ideal choice for a variety of
industries. It offers a maximum laser power of 20W UV fiber laser, and 30W UV laser marking for optimal performance. With a minimum linewidth of 0.012mm, this machine is suitable for a variety of applications. It is also
equipped with a 110mm×110mm marking range, making it ideal for larger projects. Furthermore, its external temperature range of 0℃－45℃ and humidity levels of ≤95 make it suitable for a variety of environments. This makes it
perfect for a variety of applications, such as industrial, medical,
and electronics. With its superior performance and durability, the
Questt QA-OFLM20 Fiber Laser Marking Machine is an excellent choice
for businesses looking for a reliable and efficient machine.
Customization:
Customized Service of Fiber Laser Marking Machine
- Brand Name: Questt
- Model Number: QA-OFLM20
- Place of Origin: CHINA
- Repetition accuracy: 0.003mm
- Power Supply: 220V/50HZ
- Machine material: All Aluminum Sandblasting Oxidation
- Positioning mode: Blue Light Indication
- External temperature: 0℃－45℃
Our fiber laser marking machine is the perfect choice for any business. It provides UV laser engraving machine and UV laser machine features that include high repetition accuracy, reliable power
supply, durable machine material, and positioning mode. Get the
most out of your fiber laser marking machine with the customized service we offer.
Support and Services:
We provide technical and service support for the Fiber Laser
Marking Machine. Our support team is available 24/7 for any
technical assistance you may need. We also offer a range of
maintenance and repair services to keep your machine running
smoothly. We can provide remote or onsite repairs, parts
replacement, and software updates. Our team is experienced in all
the latest laser marking technologies and can provide expert advice
on the best solutions for your needs. We also provide training
sessions for operators and maintenance staff, so they can get the
most out of their machines.
Packing and Shipping:
Fiber Laser Marking Machine Packaging and Shipping:
Once the machine is completed, it's packaged in a wooden box with
foam material to ensure its safe delivery. All necessary documents
including operation manual and warranty certificate will be
included.
The Fiber Laser Marking Machine is shipped by sea or air freight
depending on the customer's requirements.
FAQ:
Q1. What is the brand name of this fiber laser marking machine?
A1. This fiber laser marking machine is Questt, model number
QA-OFLM20, made in China.
Q2. What is the main application of this fiber laser marking
machine?
A2. This fiber laser marking machine is mainly used for product
marking, such as parts and materials identification, bar codes,
serial numbers, etc.
Q3. What type of materials can this fiber laser marking machine
handle?
A3. This fiber laser marking machine can handle a variety of
materials, such as metals, plastics, ceramics, etc.
Q4. What is the laser source of this fiber laser marking machine?
A4. This fiber laser marking machine is equipped with a 20W fiber
laser source.
Q5. What is the marking speed of this fiber laser marking machine?
A5. The marking speed of this fiber laser marking machine can reach
up to 7000mm/s.
