    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder

    Ask Lasest Price
    Brand Name : QUESTT
    Model Number : ROBOT-FL1000V
    Certification : CE ISO
    Price : 3800-6800
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 SETS/MONTH
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder

    Products Description

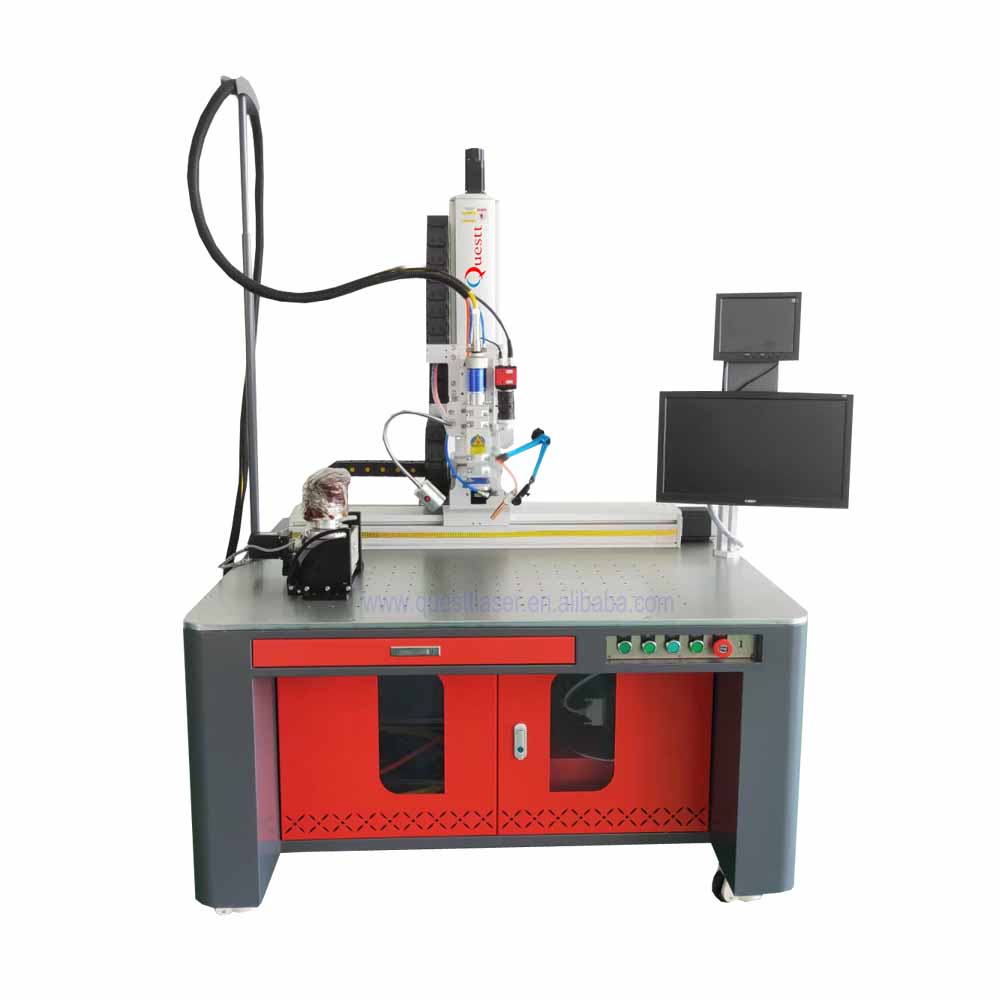

    ROBOT-FL1000V Laser Welding Machine
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Product Introduction
    The fiber continuous welding machine adopts continuous fiber laser, and through digital control of aser pulse width, energy, repetition frequency and other parameters, the workpiece is melted to form a specific molten pool, so as to realize the laser welding of the processed workpiece. It is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry,medical equipment, thermal cups, wine pots, kitchens and other industries.
    Features
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder

    1.Latest generation of fiber laser, self-developed wobble/common welding gun with safety sensing function and adjustable weld seam width;
    2.Easy welding of large objects over long distances, and hard-to-reach places;
    3.High strength and fine weld seam, no need for polishing, no consumables, no deformation;

    4.3-10 times the speed of conventional argon arc welding plasma welding;
    5.Power consumption is 10-20% less than traditional process, save 2-3 labor costs;
    6.Easy operation, long service life.
    Configuration Detail
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Laser welding head
    Integrated blowing and welding, CCD monitoring, with lighting, better observation of welding process( the length of the welding nozzle can be selected)
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Multi-axis linkage module

    Taiwan screw slider, high positioning accuracy and sensitive response ( can be customized according to
    demand)

    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Workbench
    The overall 15mm thick aluminum plate (steel plate) design compact structure, simple interface, flexible adjustment of the processing direction.
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    HD solder joint monitor
    High-definition solder joint display, to better observe the welding process.
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Water chiller
    Cooling power: 2700W. It can ensure that the welding machine has stable power, efficient and fast operation.
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Rotary Fixture
    It can weld round tubes, square tubes and other different shapes. (Optional device)
    Product Paramenters
    Model
    ROBOT-FL1000V
    Output Power
    1000W
    Laser Wavelength
    1064nm
    Laser welding Depth
    ≤5mm depending materials
    Focus Spot
    0.1-3.0mm
    Red Light Spot
    0.2-3.0mm
    Power Max
    10KW
    Laser Power Supply
    380V/3 phase/50Hz/40A
    Max Weight load
    ≤200Kg
    Worktable Running distance
    200*200mm to 1200*1200mm
    Repeat Precision
    ±0.01mm
    Position Precision
    ±0.02mm
    Position System
    Red light, CCD and Optional Rotary
    Laser Cooler
    Water Cooling
    Dimension
    1600*800*1800mm
    Machine Weight
    300kg
    Product Advantages

    1. Precise positioning
    Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.

    2. Uniform weld spot
    The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.
    3. Suitable for all kinds of weld screams
    Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.
    4. Batch & Mass Production
    Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.
    5. Wobble welding In the welding process
    Wobble welding can be realized, the spot size can be adjusted, and the automatic wire feeding device can be added according to the needs of customers

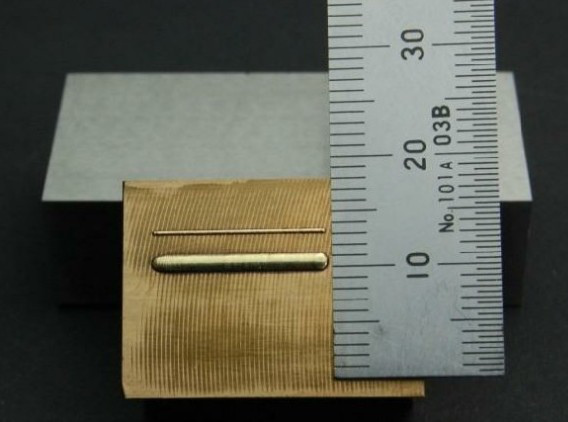

    Samples
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Our Company
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
    Raycus Desktop Auto Rotate Laser Welder 500w 1000w 2000w Fiber Laser Welders Water Cool Easy Operate Laser Welder
