Product Description:

1000W 1500W 2000W 3000W Handheld Laser Welding Machine

The handheld fiber laser welding machine changes the traditional welding method, using a high-intensity laser beam as the heat source for welding, and is equipped with a hand-held welding head to replace the previous fixed optical path. It has the advantages of simple operation, beautiful welding seam, fast welding speed and less consumables.Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries, especially for gold and silver jewelry fill the hole, point weld lines, mosaic pieces and claw foot unit area.

Products advantages

1. Power optional: So many kinds of power for you to select: 1000w 1500w 2000w 3000w

2. High efficiency: Laser welding machine have a fast welding speed. This is due to the high energy density of the laser beam. The process is quick and efficient which saves time and costs.

3. High welding quality: laser welding provides high-quality welding results. The weld bead is smooth, and the weld penetrates deep into the materials being joined, resulting in strong and durable welds.

4. Reduced heat input: the handheld laser welding machines have reduced heat input, which helps to minimize the risk of warping or distortion in the materials being welded. This is especially helpful when working with thin materials.

5. Low maintenance: compared to other types of welding machines, the handheld laser welding machines are low in maintenance.

6. Wide range of welding materials: The handheld laser welding machines can weld a wide range of materials such as stainless steel, carbon steel, aluminum, copper, and other metals.

7. Low noise: The handheld laser welding machines operate quietly, producing less noise as compared to other types of welding machines.

8. Easy operation: handheld laser welding machines are easy to operate, with simple controls that make it possible for even novice welders to produce quality welds. This makes the machine ideal for small businesses where employees may have limited training or experience in welding.

Products features

1. Hand-held welding, taking into account the flexibility, high efficiency and high weld quality of laser welding.
2.Modular design and layout of the overall equipment, beautiful and easy to maintain and debug.
3.High system flexibility, compatible with a variety of models, and short changeover time.
4.The internal design is dexterous, and the good interactive control system expands the tolerance range of the machined parts and the weld width, solves the disadvantage of small spot size, and welds are better formed.
5.With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.

Products detail

​

​

​Laser welding gun
1. The shape is light, the body engineering design method is adopted, and the grip is comfortable; the hand is easy to controland operate.
2. Beautiful weld seam, fast speed, no consumables, no weld marks, no discoloration, no need for post-grinding.
3. Can be equipped with a variety of angle nozzles to meet the welding needs of different products.

​​​

Fiber laser source

Raycus brand laser source with 100,000 working life .The industry's best quality fiber optic manufacturer.

​​​

Water cooling

Built-in water cooling design, rapid cooling. Make the machine more stable.

Technical Parameters:

Model	QA-FL500W	QA-FL1000W
Average output power	500W	1000W
Operation mode	CW/Modulate
Max modulation frequency	5KHz
Output power stablility	<3%
Red laser	Yes
Terminal type	QBH
Beam quality	1.3M2	1.1M2
Polarization	Random
Delivery cable length	20M
Power supply	3 PH 380V five wire connect
Control mode	RS232/AD
Power consumption	4KW	3KW
Cooling	Water Cooled
Operation temperature	10-40 degree
Max depth of welding	2mm	1.5mm
Machine weight	300Kg

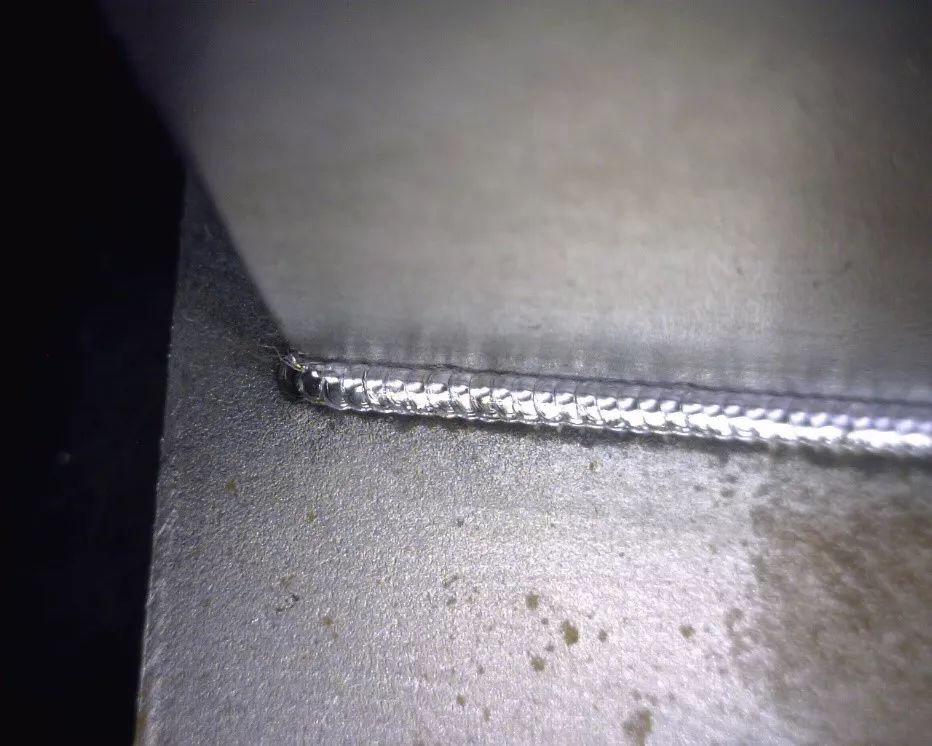

Products samples

Applications

Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries, especially for gold and silver jewelry fill the hole, point weld lines, mosaic pieces and claw foot unit area, such as welding.

​​​

​​​
