3000w 3D fiber laser cutting machine

Introduction

Wuhan QUEATT series 3D fiber laser cutting machine adopts the structure of vertical fixed industrial robot base, equipped with fiber laser, which can flexibly transmit high-quality laser to the fiber cutting head for focusing, and cooperate with high-precision capacitive tracking system , to achieve multi-angle, multi-directional three-dimensional flexible cutting of metal sheets of different thicknesses.

The PLC system independently developed and designed, combined with the flexible and fast action performance of industrial robots, can be used for teaching programming or offline programming for different products and different trajectories. It is especially suitable for special-shaped processing of three-dimensional parts of locomotives, so it is widely used in locomotive parts. , body, door frame, trunk, roof cover, door seat and other locomotive manufacturing industries.

The three-dimensional fiber laser cutting machine has a small footprint, simple operation and maintenance, and low maintenance costs. It is an advanced three-dimensional fiber laser cutting equipment that integrates high stability, high precision, high performance, and high speed

Main Configurations

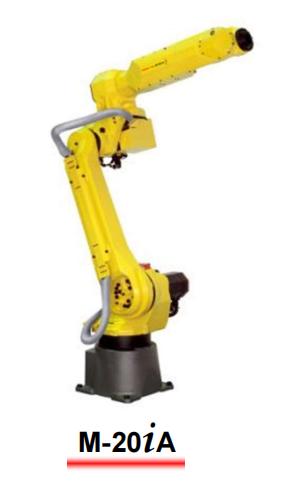

	Robotic system(ABB,FUNAC or Chinese robot) Japan FANUC M-20IA high-precision six-axis robot
	Max fiber laser source 3000W The lifetime is 100000 hours
	Dedicated laser 3D cutting head Three-dimensional pointed cutting, including collision protection device, air blowing, cooling system
	Cooling system Dual-temperature dual-control cooling system (laser cooling water cooling, laser cutting head normal temperature water cooling)
	Dedicated control system Laser mode and power control
	Helmet tooling structure tooling fixture

Optional configurations

1.Teaching Simulation System

2.Other brands of robots

3.Protecting mask

4.Dedicated tables and fixtures

5.Other special requirements customized

Function description

1.Special features for laser cutting.

2.Fast and responsive surface following function.

3.Special database functions for various graphics cutting.

4.Special operation interface configuration function for robot cutting.

5.Special TCP function for robot 3D cutting, cutting from multiple angles.

Cutting samples

Robot technical parameters

3000w laser technical parameters

Delivery and payment terms
