    3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

    Ask Lasest Price
    Brand Name : QUESTT
    Model Number : QA-FL1000W/1500W/2000W/3000W
    Certification : CE ISO
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 sets per year
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

    3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W Metal Laser Welding Machine

    3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W

    Features

    1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.

    2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.

    3.This laser equipment can be used for metal cleaning, rust removal, welding and cutting.

    4. Redlight positioning, makes the work position is more accurate and beautiful.

    5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.

    6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.

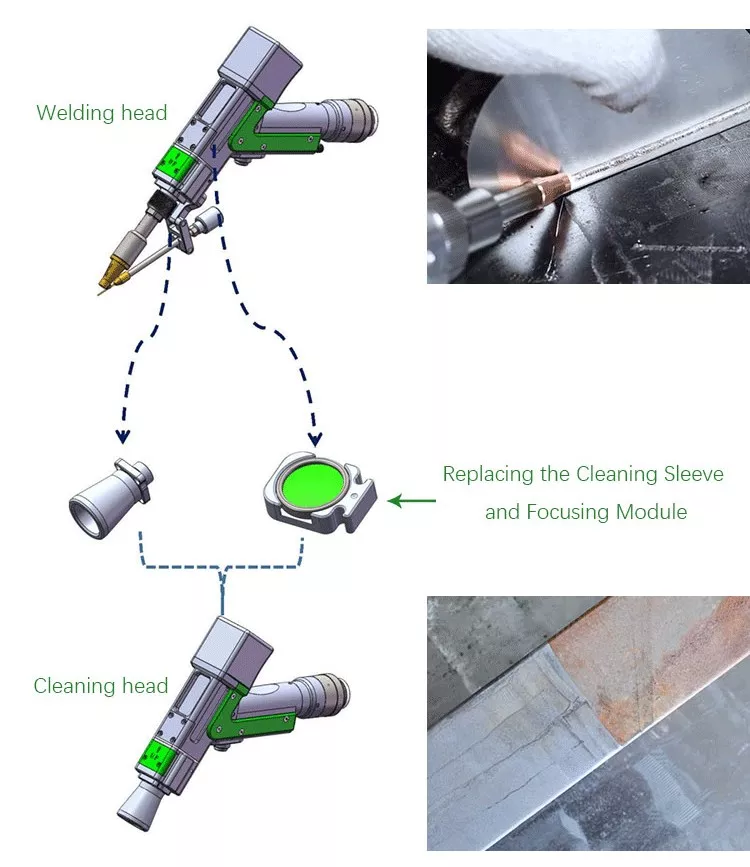

    Three type heads

    Three types gun



    Laser welding head


    Laser cutting head


    Laser cleaning head


    Parameters


    ModelQA-FL1000WQA-FL1500WQA-FL2000W
    Average output power1000W1500W2000W
    Operation ModeCW/Modulate
    Max Modulation Frequency5KHz
    Output Power Stability±3%
    Red LaserYes
    Terminal TypeQBH
    Beam Quality1.3M21.5M21.8M2
    PolarizationRandom
    Delivery Cable Length20M
    Power Supply1 PH 220V five wire connect
    Control ModeRS232/AD
    Power Consumption4KW5KW6KW
    CoolingWater Cooled
    Operation Temperature10-40 degree
    Max Depth of welding3mm4mm5mm
    Machine Weight250Kg250Kg260kg
    Package size1230*730*1440mm

    Samples
