Smart Mirror LED Mirror Sandblast Machine
Features

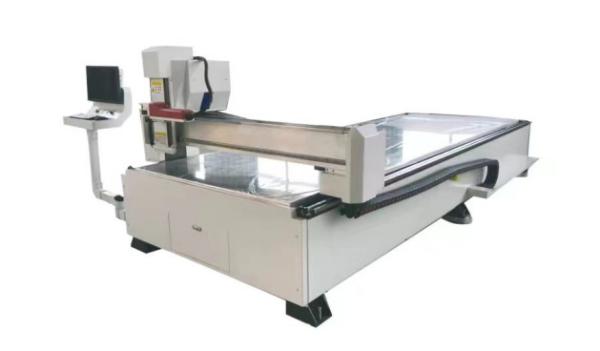

QA-LM200-1325 CNC Smart Led Mirror Glass Laser Sandblasting Machine
– a revolutionary advancement that transforms traditional
sandblasting processes with cutting-edge laser technology.
Key Features:
1. Precision Laser Technology: Ensures accurate and consistent
sandblasting results with minimal material wastage.
- Adopt more precise ball screw movement system with Aluminium
Gantry.
3. The laser is not normal one, but very narrow pulse width and
high peak power laser
4. The system is water cooled to be more stable
5. Including smoke filter system, etc
6. Automated Operation: User-friendly interface with automated
controls for ease of use and efficiency.
Benefits:
1. Enhanced Accuracy: Achieve intricate designs and patterns with
unmatched precision.
2. Efficiency: Reduce material wastage and increase production
speed compared to traditional sandblasting methods.
3. Safety: Eliminate harmful dust and reduce manual labor, creating
a safer working environment.
4. Cost-effective: Lower operational costs with reduced maintenance
and higher productivity.
Why Choose CNC Smart Led Mirror Glass Laser Sandblasting Machine?
• Innovative Technology: Stay ahead of the competition with the
latest laser sandblasting technology.
• Quality Assurance: Built to meet international quality standards,
ensuring reliable performance and durability.
• Comprehensive Support: Our dedicated team provides training,
technical support, and after-sales service to ensure your success.
Don’t miss out on this opportunity to revolutionize your
sandblasting operations. Invest in the future of glass etching
technology with the CNC Smart Led Mirror Glass Laser Sandblasting
Machine today!
Feel free to customize this introduction and promotion based on
specific details and benefits of your product to better resonate
with your target customers.
Specifications:
| Product Name | CNC Smart Led Mirror Glass Laser Sandblasting Machine |
| Laser Power | 200w | Wavelength | 1064nm |
| Marking Area | 1300×2500mm / 1500×3000mm / 2000×3000mm (customized) |
| Plus Width | 2~200ns Adjustable | Frenquency | 1~4000kHz |
| Beam Quality M2 | <1.5m2 | Peak Power | 200KW |
| Cooling Method | Water-cooling | Reducer | Japan Shimpo |
| Servo Motor | Japan Panasonic / Taiwan Syntec / Taiwan Delta (optional) |
| Marking materials | Glass,mirroring,all kinds of metal,opaque nonmetal materials etc. |
| Processing speed | 35m/min |
| XYZ traveling | XYZ traveling positioning accuracy |
| System Support | Windows ALL(7-8-10-11) |
| Format support | Direct import of CAD files without generating code(dxf,dwg) |
| Laptop/PC | support |
| X, Y axis positioning accuracy | ±0.05mm/m | X, Y axis movement repeatability | ±0.03mm/m |
| Acceleration | 0.8G | | |
| Weight (KG) | 1200 KG | Dimension(L*W*H) | 2500*1300*1100mm |
| Power Supply | Single Phase 220v/50Hz 3KW |
3) Configurations
| Num | Item Name | Model | Qty | Brand |
| 1 | Gantry beam working table with rack and pinion System | 1300*2500mm | 1 set | QUESTT |
| 2. | Laser Generator
| 200W
| 1 set | JPT YDFLP-200-M8-S-W-V2 |
| 3 | Laser marking head | High speed and accurate scanner | 1 set | ZBTK-10A |
| 4 | Telecentric Lens | Telecentric lens | 1 set | Huayin F100 |
| 5 | Control System | Taiwai syntec | 1 set | Syntech |
| 6 | Fume Extractor | Fumego | 1 set | XL-300 |
| 7 | Water Chiller | HL-1000
| 1 set | Hanli |
| 8 | Device look color | Blue and White | 1 set | |
| 9 | Worktable | Cast aluminum gantry machine | 1 set | QAt-LM-1325 |
| Cast aluminum Gantry | Customize | | Special for laser |
| rack and pinion | Transmission components | | HIWIN |
| Linear Guides | Transmission components | | HIWIN |
| Reducer | Japan SHIMPO | | SHIMPO |
| Automatic oil feeder | Domestic | | Special for laser |
| AC servo motor | CNC system | | Panasonic |
| X-axis motor and driver | CNC system | | Panasonic |
| Y-axis motor and driver | CNC system | | Panasonic |
| X-axis motor and driver | CNC system | | Panasonic |
| 10 | Pneumatic | Relay/AC contactor | 1 set | SCHNEIDER |
| 11 | Gas line | High pressure electronic valve | 1 set | Schneider |
| 12 | Breaker/contactor | SCHNEIDER | 1 set | SCHNEIDER |
| 13 | Industrial control computer | 16G, Hardisk1T,19”LCD | 1 set | Compatible PC |
| 14 | switching power supply | MEANWELL | 1 set | MEANWELL |
| 15 | Power cable | Wire and cable | 1 set | Davos |
4)Software Function:
- Professional supporting laser control processing software:
high-precision Taiwan professional laser control system, used under
the WINDOWS operating interface (convenient for drawing and
operation)
- Compatible with Wentai Engraving, CorelDRAW, AUTO CAD and other
drawing software.
- It has an automatic correction function to ensure scanning
accuracy.
- It has a scanning path selection function to ensure optimal
processing efficiency.
- It has the origin correction function and can set the origin twice.
- Operation input: keyboard and mouse, conversation interface
