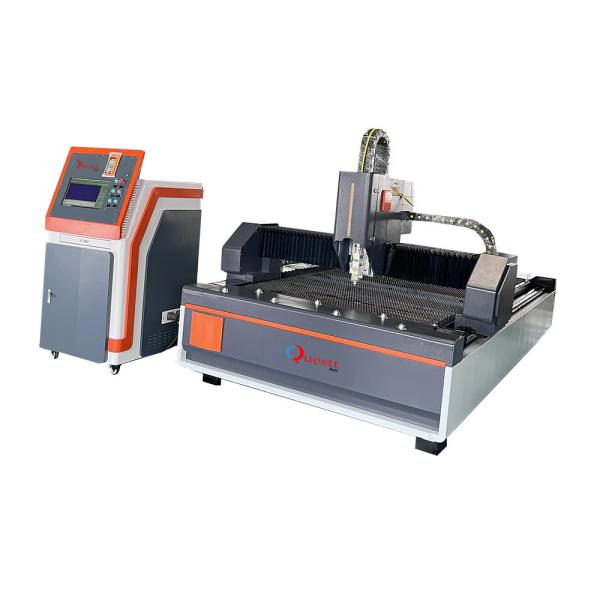

    QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

    Ask Lasest Price
    Brand Name : QUESTT
    Model Number : QA-LC1500
    Certification : CE ISO
    Price : 16000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 SETS/MONTH
    Delivery Time : 20 DAYS
    • Product Details
    • Company Profile

    QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

    QUESTT Laser 1500W 3000W QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine

    Product Description

    What is the Specifications and Fetures?

    Overview

    Brief Introduction


    Rigid-FL1500 Fiber Laser cutting machine integrates high power fiber laser, optical, mechanical and electrical in one system which adopts latest laser technology, CNC control technology and high-performance laser power system to process all kinds of metal sheets cutting with high speed and efficiency.


    The cutting range for the Laser Cutting Machine is 3000mm*1500mm. It has high speed and its products have smooth edge, small kerf width and little heat effect. This kind of machine is especially suitable for thin sheet metal cutting.

    Technical Parameters


    Laser output power1500W
    Laser wavelength1070 nm
    Laser mediumGlass fiber with rate-earth element
    Max cutting speed80m/min
    Max cutting thickness3-20mm according to material
    Output energy regulating10%~100%
    Input electric power for laser≤2KW
    Type of coolingWater cooling
    Drive modeImported servo motor
    Transmission modeImported high precision Rack and Pinion
    Max-range for cutting3000mm×1500 mm
    Power supply220V/50HZ
    Contour dimension4270mm×2420 mm×1750 mm

    Configurations

    ItemDetailsPicture
    Fiber Laser Source

    1500W Fiber Laser Generator from China

    Model: MFSC-1500W


    Laser Cutting HeadAuto focus Raytools from Swiserland Model: BM109
    Servo Motor & DriverYASKAWA From Japan
    Reducer with GearShimpo from Japan Model VRT-090-7 F3

    Rack Pinion

    YYC from Taiwan(World Brand)


    Model: M2(45 steel)

    Linear Guiderail

    Hiwin From Taiwan(world Brand)


    X axis model: HGH30CA2R4080ZACII Y axis model: HGH20CS2R2210ZACII

    Control SystemCyperCut from Bochu China
    Oil LubricatedAutomatic lubricated
    Gantry SystemSteel gantry
    Water chillerHanli 1500w From China
    Pneumatic ComponentsRelay/AC contactor SCHNEIDER
    Proportional valveNNT

    Warranty

    The warranty period is 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially ,we are responsible for offering the fittings free of charge during the warranty period. Customer needs to send damaged fittings to us by courier with customer’s charge before we send back the alternative fittings. After the warranty period, parts need to be repaired or changed, shall be paid

    Our factory

    Questt Aisa CNC 4020 6020 2KW 3KW 4KW fiber laser cutting machine with desptop source priceQuestt Aisa CNC 4020 6020 2KW 3KW 4KW fiber laser cutting machine with desptop source price

    Questt Aisa CNC 4020 6020 2KW 3KW 4KW fiber laser cutting machine with desptop source price


    Packaging & Shipping

    Questt Aisa CNC 4020 6020 2KW 3KW 4KW fiber laser cutting machine with desptop source price
