    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution

    Ask Lasest Price
    Brand Name : Questt
    Model Number : Robot400M
    Certification : CE,ISO,BACL
    Price : Negotiable
    Payment Terms : T/T, Western Union,, L/C
    Supply Ability : 3920 sets / year
    Delivery Time : 11 days
    • Product Details
    • Company Profile

    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution

    400W Laser soldering Machine for Repairing mold Imported Xenon Lamp 120J


    Introduction


    Robot400M laser soldering machine for repairing mold is is especially designed to repair precision mouds.

    After molds using for a long time, the corner or edge will miss some parts, this laser soldering machine is applied to repair these missing parts by welding wires.

    The mould repairing can make full use of the original moulds, which will greatly reduce the production cost, and improve the working efficiency. The technology can also be applied to modification of mould design or size, thus reducing the development cycle of the product.

    By controlling laser width, energy, top power and repitition frequency to melt workpieces , form a special melting pool, the processing type is heat transmission, processing work pieces surface by laser radiation , heat transmit from surface to bowel.


    Machine Advantages


    1. The ceramic focusing cavity is corrosion and high temperature resistant, and the service life is 8 to 10 years

    2. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
    3. Up and down by motor,front and after adjustable, especially suitable for repair of large, medium and small-sized moulds.
    4. Intelligent remote controllers are employed for adjusting parameters, with simple and convenient operation.

    5. non-pollution
    6. The light spots can be adjusted in size.

    7. Imported X lamp and rod, the service life of the xenon lamp is over 8 million times.

    8. High quality optical system

    9. high welding quality, excellent laser beam

    10. Seperate movable working table



    Specification data sheet

    Laser Welding Machine For Repairing Mold.pdf


    typeRobot400M
    Output laser power400W
    Energe60-120 J
    Wave length1064nm
    Laser power supply4KW
    Laser welding minimum melt pool0.1mm
    Laser pulse frequency≤50Hz
    Laser pules width≤20ms
    Port adjusting scope0.1~3.0mm
    Port size0.2~3.0mm
    Protective gasN2
    Power demand220V one-phase/50Hz/20A
    Figure size of systemLaser welder1160X640X1410mm
    Water chiller740X600X1090mm

    Consumable


    ItemSpecificationQuantity consume of one yearMarks
    Imported Xenon Lamp

    1.8 million times` lighting

    2.12 month lifetime

    3.material imported

    2-6 pcs
    Imported Protection lens

    1.6-12 months lifetime

    2.material imported

    2-4pcs

    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution

    Applications


    It is applicable to metallic materials such as cold working high alloy steel, hot forging high alloy steel, nickel tool steel, high grade steel, copper alloy, beryllium steel, and high flexibility aluminum alloy.


    The remote controller or the touch operation panel can be used to select the laser output power, frequency, pulse width and other parameters.


    The moving speed of the workbench can be set to manipulate the workbench moving, so that the welding parameters match the welding requirements, and thus producing optimal effect of smooth welding joints and points.

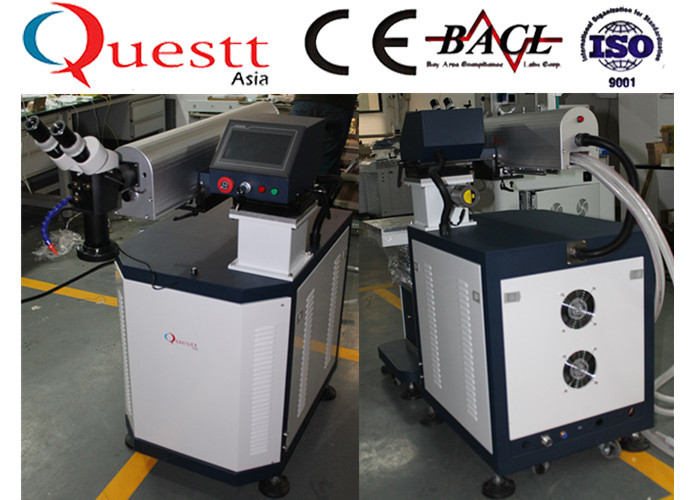

    Laser source

    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution

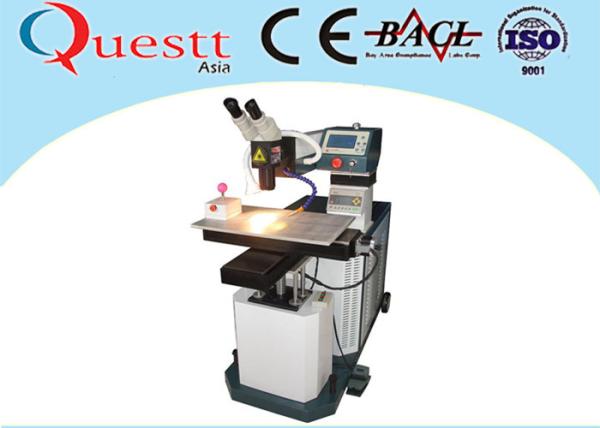

    Machine outlook

    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution


    FAQ


    1 Q: What is the warranty of the machine?

    A: The warranty is 1 year, but whole life after-sale service.

    2 Q: What is the payment term?

    A: T/T, L/C, Westen Union, etc.

    3 Q: What is the service

    A: Engineers can offer oversea services .

    4 Q: How about the quality?

    A: Germany high technoloy.

    5 Q: How is the operation?

    A: We offer operation manual and videos, show you how to operate the machine.

    We can also send engineers to your factory for training. Or you can send worker to training in our factory.

    Diode Rod YAG Jewelry Laser Welding Machine For Repairing Mold , Non - Pollution
