Portable Optical Fiber Laser Marking Machine 20W Imported lens
scanner
Overview
Quantum-FL20P Portable Optical Fiber Laser Marking Machine is a portable type laser etching machine, which take very small space,
and easy to move and put on any dest you prefer.
This laser printer can reconize all kinds of characters, signs, graphs, images, bar codes, two dimensional
codes, automatically increased serial numbers.
The critical component use long lifetime stable device.
Advantage
1 High quality laser beam
2 Low running cost
3 Fast delivery time
4 Maintenance free
5 Completely sealed optical system
6 Take samll space
Components
10W/20W/30W fiber laser source
Visible red beam positioning system
High speed Galvo Scanner Head and F-theta Lens
USB Control board card
High quality power supply
Free software
Specifications
| Product Specifications |
| Product | Quantum-FL20P |
| Purpose | Marking / engraving |
| Laser | |
| Laser Wavelength | 1000-1100nm |
| Laser Type | Fiber LASER |
| Laser Output Power | 20W |
| typical Laser Life Span | 100,000hrs |
| Modulation frequency | 20-100kHz |
| Max. Working Speed | 7000mm/s |
| Galvanometer | Yes |
| Lens | F-Theta Lens |
| Working Area | |
| Beam Diameter/Quality | M2<1.2 |
| Working Area | 70x70mm (standard), 110x110mm, 160x160mm, 175x175mm,220x220mm |
| Repeatability | 0.01mm |
| Positioning accuracy | 0.01mm |
| Min Line Width | 0.01mm |
| Marking/Cutting Depth | 0.01-0.2mm (depending on material) |
| Control | |
| Cooling | Air cooling |
| No. Axis | 3 Axis (Manual) |
| Rotation | Optional(Automatic only) |
| Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller | Computer with marking software |
| USB 2.0 Compatible | YES |
| File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
| Physical Characteristics | |
| Dimensions | 600*500*590mm |
| Weight (kg) | 58kg |
| Guarantee: | (see Ts&Cs on support page) |
| General Guarantee | 12 Months from date of arrival at destination |
| Laser Source | 2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
| 20,000hrs/18 months - Smart Series |
| 10,000hrs/12 months - Diode Pumped |
| 100,000hrs/2 years - Fiber LASER
|
Application
It can mark on almost all kinds of materials. Metal and non-metal.

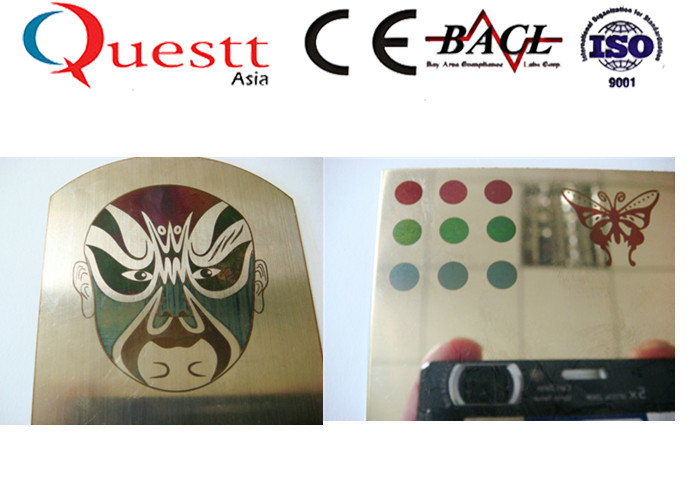

Special Function
It can mark different color with different parameter such as red,
green, blue and etc.
The material should be mirror SS.
Sample
1 Q: What is the warranty of the machine?
A: The warranty is 1 year
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, PayPal etc.
3 Q: What is the service ?
A: oversea service and whole life after sale service.
4 Q: How about the quality?
A: Germany high technoloy with best quality spare parts.
5 Q: Can we customize as special needs?
A: Yes, you can.
Machine details
