Laser Marking Medical Devices 20W , Online Production Fly Laser
Marking Machine
Introduction
Quantum - FL20F Online Production Fly Laser Marking Machine is specially design for automatic production lines, marking on all
kinds of products, like bottal cover, paper box, glass etc.
It can automatically perform the engraving of characters, signs,
graphs, images, bar codes, two-dimensional codes, and automatically
increasing serial numbers to a wide range of materials.
The laser etching machine can support file formats like PLT, PCX,
DXP, BMPand so on.
It can work 24-hour without stop, makes it meet the demand of
massive on-line and off-line industrialized production.
The laser printer is a fly laser marking machine, also with four wheels on the ground, so
the machine can move freely to match up the auto producing lines.
Technical data
| Product Specifications |
| Product | Quantum-FL20F Laser marking medical devices |
| Purpose | Marking printing engraving |
| Laser | |
| Laser Wavelength | 1000-1100nm |
| Laser Type | Fiber laser source |
| Laser Output Power | 20W |
| typical Laser Life Span | 100,000hrs |
| Modulation frequency | 20-100kHz |
| Max. Working Speed | 7000mm/s |
| Galvanometer | Yes |
| Lens | F-Theta Lens |
| Working Area | |
| Beam Diameter/Quality | M2<1.2 |
| Working Area | 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm |
| Repeatability | 0.01mm |
| Positioning accuracy | 0.01mm |
| Min Line Width | 0.01mm |
| Marking/Cutting Depth | 0.01-0.2mm (depending on material) |
| Control | |
| Cooling | Air cooled |
| No. Axis | Z Axis (Manual) |
| Rotation | Optional(Automatic only) |
| Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller | Computer with marking software |
| USB 2.0 Compatible | YES |
| File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
| Physical Characteristics | |
| Dimensions | 680x650x1100mm |
| Weight (kg) | 100kg |
| Guarantee: | |
| General Guarantee | 12 Months from date of arrival at destination |
| Laser Source | 2000hrs/3 months - LAMP PUMPED (Except Smart Series) |
| 20,000hrs/18 months - Smart Series |
| 10,000hrs/12 months - Diode Pumped |
| 100,000hrs/2 years - Fiber LASER |
Applications
Automatic production lines.
The spare parts of automobiles and motorcycles, instrument and
meter, aerospace, war products, hardware and machinery, measuring
and cutting tools
It can mark all kinds of metal materials and some non-metallic
materials,industrial plastic,electroplates,metal-coated materials,
rubbers, ceramics,mobile button,plastic transparent button.
Electronic parts,IC,tools,communication products.

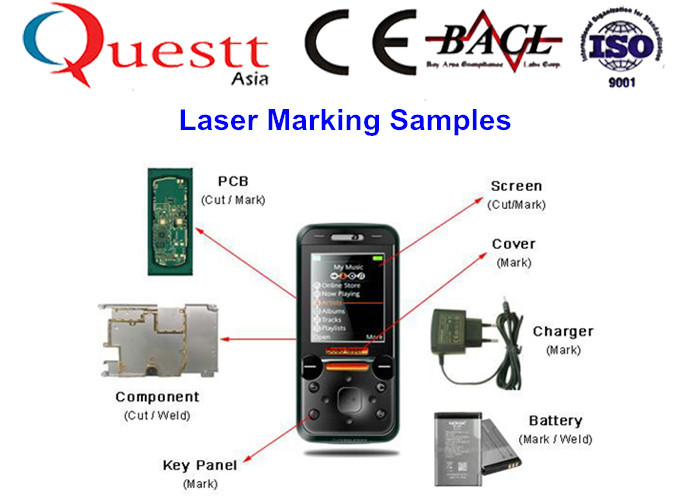

Samples
1 Q: What is the warranty of the machine?
A: The warranty is 1 year
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, PayPal etc.
3 Q: What is the service ?
A: oversea service and whole life after sale service.
4 Q: How about the quality?
A: Germany high technoloy with best quality spare parts.
5 Q: Can we customize as special needs?
A: Yes, you can.
Different angle of the machine
