YAG laser texturing machine hardening for metal mold equip robotic arm 2000W

Description

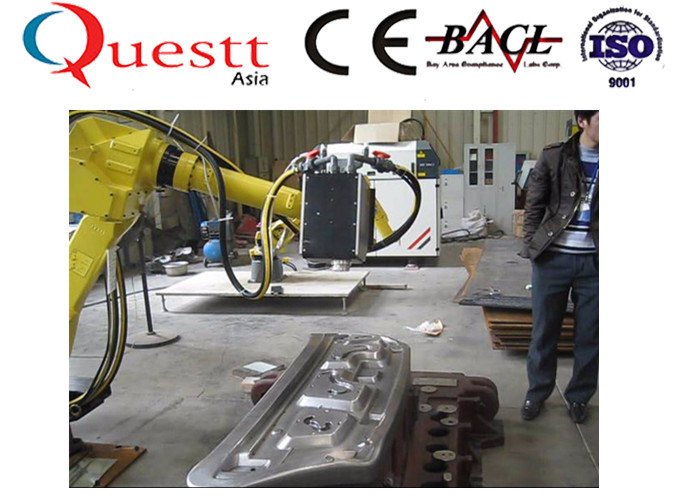

Adopting the latest diode laser, six-axis robot and control system, it is a flexible system with multi-axis, transimiting via a fiber cable to meet the metal surface laser hardening / normalizing / tempering/laser alloying and laser cladding / re-manufacturing and other advanced processing requirements.

Different models: Gantry, car mobile, floor fixed, horizontal movement and so on.

Technical features: short-wave length, high absorption-efficiency, high-electro-optical conversion rate, energy distribution, temperature feedback control

Application area: Metallurgy, mold, machinery manufacturing, petrochemical, light industry, energy, transportation, military and other industries.

Typical applications: automotive mold, mining machinery, coal machinery, petrochemical machinery, generator sets, rolling mill machinery and other large mechanical parts.

Features

1 Completely disordered, surface structure is disordered Pock.

2 Board drawability and elongation is much better than EDM technology.

3 Each hair of the "points" have bosses. As the boss of a transfer rate of about 80%, over the amount of steel is higher than 50% of YAG laser texturing.

4 High accuracy, good uniformity, high repeatability, high reliable operation.

5 High efficiency, good beam quality. Photoelectric conversion efficiency 28%, the modulation frequency of 500KHz, beam quality M2 value of less than 1.1

6 Lifetime is more than 100,000 hours without failure.

7 Texturing process can be set according to the requirements set.

8 Roll surface roughness range of 0.5 ~ 15.0μm.

Specification

1: Wavelength: 1070±10nm
2: Operation:Continouse/pulse
3: Average Power: 2X400W
4: Outpt Power Stabilty: <<±0.5%
5: Max moudel frequency:100KHz
6: Pulse stablity:<±0.5%
7: Mix Pulse Width:<10μS
8: Beam Diameter 1/e2: 5±0.5mm
9: Divergency:<0.4mrad
10: M2: < 1.1
11: Polarization: Random
12: BPP:0.37mm.mard

Application

Typical applications: cold roll texturing

Working

3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
