3D laser engraved crystal cube machine 3W 2D 3D Photo camera Glass
engraving
Introduction

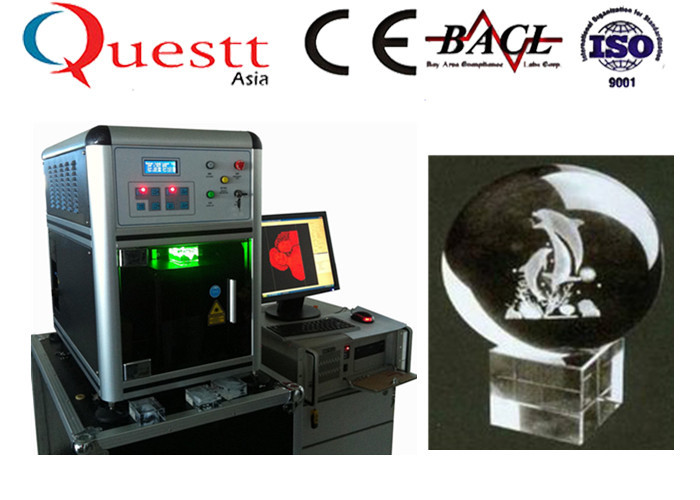

Angel-2000B1 3D laser engraved crystal cube machine is a desktop type 3D
crystal laser engraving machine to make beautiful souvenirs.
The laser machine has equipped with rapid scanner, which could engrave 2D, 3D image in
crystal and glass.
The laser source is green laser with wavelenth only 532nm. Much
more precision than fiber laser.
Its technical parameters are among those of the top performance
laser engraving systems.
Features
1. Imported rapid scanner
2. Imported laser source device
3. Easy to install and operate the machine
4. Excellent stability for working
5. Maintenance free (apart from occasional lubrication of moving
parts)
6. Completely sealed optical system to protect the operator
7. It adopts original technology, and the engraving range is large.
8. This machine is suitable for individual production and batch
fast process.
9. Just one machine could be satisfied with capacity for both
storefronts network distribution and elecgtric-business distrib
ution.
10. It comes laser to greatly advance laser speed. It adopts
incorporated structure, and it is good fluid, suited to use in
Supermarket.
Specification
| Model | Angle-2000B
| Angle-2000B1
| Angle-2000C
|
| Laser /Wavelength | semiconductor diode 532 nm | semiconductor diode 532 nm | semiconductor diode 532 nm |
| Laser power | 3W | 3W | 3W |
| Diode lifetime | 25000 hours | 25000 hours | 25000 hours |
| Max working scope | 150*200*100mm | 300*400*130mm | 800*1200*150mm |
| Engraving dot pitch | 0.07-0.12mm | 0.07-0.12mm | 0.07-0.12mm |
| Engraving spot size | 40-80μm | 40-80μm | 40-80μm |
| Max engraving speed | 2500 dots/s 3800 dots/s | 2500 dots/s 3800 dots/s | 2500 dots/s 3800 dots/s |
| Resolution | 800-1200 dpi | 800-1200 dpi | 800-1200 dpi |
| Batch processing | yes | yes | yes |
| 3 axis screw rod accuracy | 0.02mm/300mm | 0.02mm/300mm | 0.02mm/300mm |
| 3 axis repositioning accuracy | <3μm/300mm | <3μm/300mm | <3μm/300mm |
| Total Power | 800 W | 1000 W | 1500 W |
| Cooling system | Air cooling | Air cooling | Air cooling |
| Temperature | 15℃~30℃ | 15℃~30℃ | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall | <85%, non-dewfall | <85%, non-dewfall |
| Air | clean, non-corrosiveness gas | clean, non-corrosiveness gas | clean, non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit |
| Voltage | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ |
| Laser Frequency | 2000 HZ | 2000 HZ | 2000 HZ |
| Material | Crystal glass etc | Crystal glass etc | Crystal glass etc |
| Control system | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) |
| Software | self reseach software for 3D, 2Ddots cloud,and for control machine | self reseach software for 3D, 2Ddots cloud,and for control machine | self reseach software for 3D, 2Ddots cloud,and for control machine |
| Dimension before packing | 500mm*650mm*780mm(L*W*H) | 720mm*950mm*970mm(L*W*H) | 1650*1850*1750mm 600*450*160mm(L*W*H)
|
| Weight | 130Kg | 200Kg | 385KG |
Warranty
One year from the date the machine arrives the destination Except
consumable part of the lamp and damage artificially.
The seller is responsible for offer free fittings in the warranty
period (the buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after
warranty period, the seller offers paid service.
Samples
Machine overview
