Large size 3d laser crystal engraving machine 3W 3d camera green
laser imaging
Introduction
Angel-2513 Crystal 3D Laser Engraving Machine could work for a large scale production of 2D and 3D animals &
plants, architectures, models such as car, boat, airplane etc and 3D scene show,glass marking.
Its technical parameters are among those of the top performance
laser engraving systems.
It adopts the advanced galvanometer scanner technology together
with the 2KHz /4Kz diode-pumped Nd: YAG frequency doubling laser
which is faster, the laser point is more thin and bright, the image
also will be more elaborate and lively. The Key parts of the
apparatus mainly come from Germany and the USA.
Features
1. High quality laser beam
2. Low running cost
3. Easy to install and operate
4. Excellent stability
5. Maintenance free (apart from occasional lubrication of moving
parts)
6. Completely sealed optical system
Specification
| Model | Angel-2513 | Angel-3015 | Angel-30185 |
| Laser /Wavelength | semiconductor diode 532 nm | semiconductor diode 532 nm | semiconductor diode 532 nm |
| Diode lifetime | 25000 hours | 25000 hours | 25000 hours |
| Max working scope | 1300mm*2500mm*130mm | 1500mm*3000mm*130mm | 1850*3000*130mm
|
| Engraving dot pitch | 0.07-0.12mm | 0.07-0.12mm | 0.07-0.12mm |
| Engraving spot size | 40-80μm | 40-80μm | 40-80μm |
| Max engraving speed | 4000 dots/s | 4000 dots/s | 4500 dots/s |
| Resolution | 1500dpi | 1500dpi | 1500dpi |
| Batch processing | yes | yes | yes |
| 3 axis screw rod accuracy | 0.02mm/300mm | 0.02mm/300mm | 0.02mm/300mm |
| 3 axis repositioning accuracy | <3μm/300mm | <3μm/300mm | <3μm/300mm |
| Total Power | 1500 W | 1800 W | 2300 W |
| Cooling system | Air cooling | Air cooling | Air cooling |
| Temperature | 15℃~30℃ | 15℃~30℃ | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall | <85%, non-dewfall | <85%, non-dewfall |
| Air | clean, non-corrosiveness gas | clean, non-corrosiveness gas | clean, non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit |
| Voltage | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ |
| Laser Frequency | | 50/60HZ | 50/60HZ |
| Engraving Material | Crystal glass etc | Crystal glass etc | Crystal glass etc |
| Control system | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) |
| Software | self reseach software for 3D, 2Ddots cloud, and for control machine | self reseach software for 3D, 2Ddots cloud, and for control machine | self reseach software for 3D, 2Ddots cloud, and for control machine |
| Dimension before packing | 3900*2200*130mm (L*W*H) | 4000*2350*130mm (L*W*H) | 3000*1850*130mm (L*W*H) |
| Weight | 1000Kg | 1200Kg | 1560KG |
Warranty
One year from the date the machine arrives the destination Except
consumable part of the lamp and damage artificially. The seller is
responsible for offer free fittings in the warranty period (the
buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after
warranty period, the seller offers paid service. If the customer
needs the engineer to supply the service oversea, all the expends
will be paid by the customer.

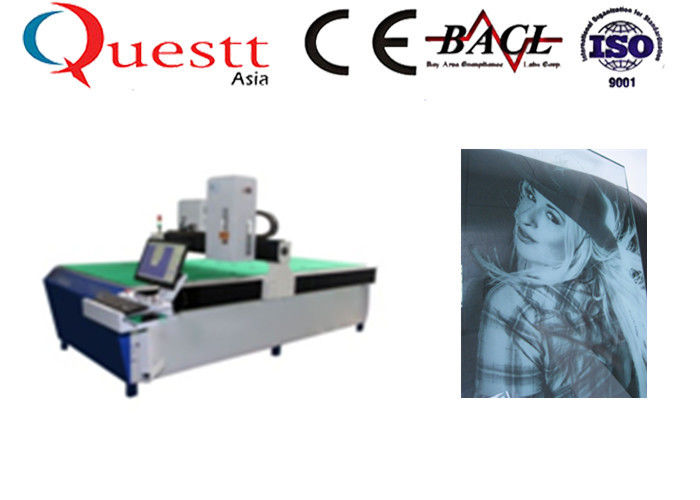

Samples

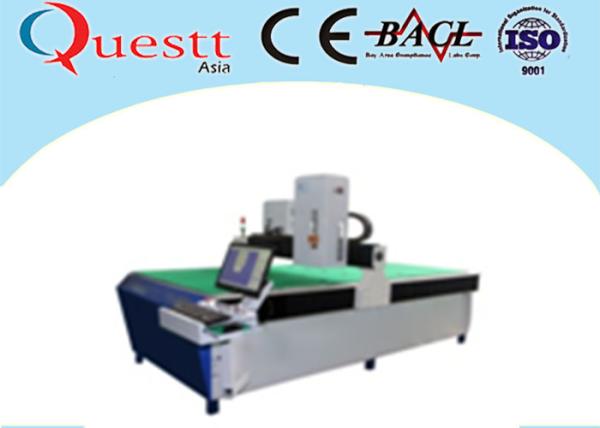

Machine overview
FAQ
1 Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wooden case.
In the middle, the machine is covered by foam, to protect the
machine from shaking. For the inside layer, the machine is covered
by thickening plastic bag for waterproof.
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, PayPal etc.
3 Q: What is the service
A: Engineer offer oversea service .
4 Q: How about the quality?
A: High quality best price.
