Desktop 3D Crystal Laser Engraving Machine 150x200x100mm size 3W
laser power
Introduction

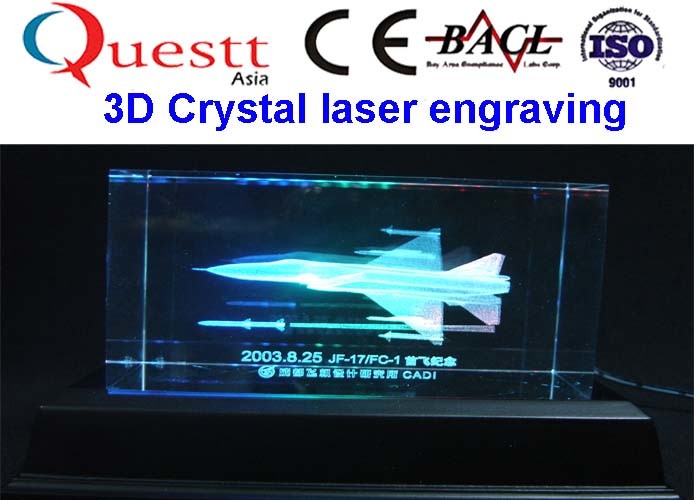

Angel-2000B desktop 3D Crystal Laser Engraving Machine equip with rapid scanner, which could engrave 2D, 3D image in
crystal and glass with nice outlook.
Its technical parameters are among those of the top performance
laser engraving systems.
It could work for a large scale production of 2D and 3D animals &
plants, architectures, models
such as car, boat, airplane etc and 3D scene show, glass marking.
Features
1. High quality laser beam
2. Low running cost
3. Easy to install and operate
4. Excellent stability
5. Maintenance free (apart from occasional lubrication of moving
parts)
6. Completely sealed optical system
Specification
| Model | Angle-2000B
| Angle-2000B1
| Angle-2000C
|
| Laser /Wavelength | semiconductor diode 532 nm | semiconductor diode 532 nm | semiconductor diode 532 nm |
| Laser power | 3W | 3W | 3W |
| Diode lifetime | 25000 hours | 25000 hours | 25000 hours |
| Max working scope | 150*200*100mm | 300*400*130mm | 800*1200*150mm |
| Engraving dot pitch | 0.07-0.12mm | 0.07-0.12mm | 0.07-0.12mm |
| Engraving spot size | 40-80μm | 40-80μm | 40-80μm |
| Max engraving speed | 2500 dots/s 3800 dots/s | 2500 dots/s 3800 dots/s | 2500 dots/s 3800 dots/s |
| Resolution | 800-1200 dpi | 800-1200 dpi | 800-1200 dpi |
| Batch processing | yes | yes | yes |
| 3 axis screw rod accuracy | 0.02mm/300mm | 0.02mm/300mm | 0.02mm/300mm |
| 3 axis repositioning accuracy | <3μm/300mm | <3μm/300mm | <3μm/300mm |
| Total Power | 800 W | 1000 W | 1500 W |
| Cooling system | Air cooling | Air cooling | Air cooling |
| Temperature | 15℃~30℃ | 15℃~30℃ | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall | <85%, non-dewfall | <85%, non-dewfall |
| Air | clean, non-corrosiveness gas | clean, non-corrosiveness gas | clean, non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit |
| Voltage | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ |
| Laser Frequency | 2000 HZ | 2000 HZ | 2000 HZ |
| Material | Crystal glass etc | Crystal glass etc | Crystal glass etc |
| Control system | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) |
| Software | self reseach software for 3D, 2Ddots cloud,and for control machine | self reseach software for 3D, 2Ddots cloud,and for control machine | self reseach software for 3D, 2Ddots cloud,and for control machine |
| Dimension before packing | 500mm*650mm*780mm(L*W*H) | 700mm*900mm*970mm(L*W*H) | 1650*1850*1750mm 600*450*160mm(L*W*H)
|
| Dimension after packing | 620mm*820mm*970mm(L*W*H) | 830*1170*1040mm(L*W*H) | 1700*2000*1800mm |
| Weight | 130Kg | 230Kg | 385KG |
Warranty
One year from the date the machine arrives the destination Except
consumable part of the lamp and damage artificially. The seller is
responsible for offer free fittings in the warranty period (the
buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after
warranty period, the seller offers paid service. If the customer
needs the engineer to supply the service oversea, all the expends
will be paid by the customer.
Machine overview
