Large size 3d laser crystal engraving machine 3W 3d camera green
laser imaging
Introduction
Angel-30185 Crystal 3D Laser Engraving Machine Manufacturer could work for a large scale products
It can make 2D and 3D animals & plants, architectures, models such
as car, boat, airplane etc and 3D scene show,glass marking.
It adopts the advanced galvanometer scanner technology together
with the 2KHz /4Kz diode-pumped Nd: YAG frequency doubling laser
which is faster, the laser point is more thin and bright, the image
also will be more elaborate and lively. The Key parts of the
apparatus mainly come from Germany and the USA.
Features
1. High quality laser beam
2. Low running cost
3. It adopts original technology, and the engraving range is large.
4. This machine is suitable for individual production and batch
fast process.
5. Just one machine could be satisfied with capacity for both
storefronts network distribution and elecgtric-business distrib
ution.
6. It comes laser to greatly advance laser speed. It adopts
incorporated structure, and it is good fluid, suited to use in
Supermarket.
Specification
| Model | Angel-2513 | Angel-3015 | Angel-30185 |
| Laser /Wavelength | semiconductor diode 532 nm | semiconductor diode 532 nm | semiconductor diode 532 nm |
| Diode lifetime | 25000 hours | 25000 hours | 25000 hours |
| Max working scope | 1300mm*2500mm*130mm | 1500mm*3000mm*130mm | 1850*3000*130mm
|
| Engraving dot pitch | 0.07-0.12mm | 0.07-0.12mm | 0.07-0.12mm |
| Engraving spot size | 40-80μm | 40-80μm | 40-80μm |
| Max engraving speed | 4000 dots/s | 4000 dots/s | 4500 dots/s |
| Resolution | 1500dpi | 1500dpi | 1500dpi |
| Batch processing | yes | yes | yes |
| 3 axis screw rod accuracy | 0.02mm/300mm | 0.02mm/300mm | 0.02mm/300mm |
| 3 axis repositioning accuracy | <3μm/300mm | <3μm/300mm | <3μm/300mm |
| Total Power | 1500 W | 1800 W | 2300 W |
| Cooling system | Air cooling | Air cooling | Air cooling |
| Temperature | 15℃~30℃ | 15℃~30℃ | 15℃~30℃ |
| Environment humidity | <85%, non-dewfall | <85%, non-dewfall | <85%, non-dewfall |
| Air | clean, non-corrosiveness gas | clean, non-corrosiveness gas | clean, non-corrosiveness gas |
| Operation system | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit | Windows 2000,Windows XP,win7 32bit |
| Voltage | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ | 100-240VAC,5A 50/60HZ |
| Laser Frequency | | 50/60HZ | 50/60HZ |
| Engraving Material | Crystal glass etc | Crystal glass etc | Crystal glass etc |
| Control system | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) | with high speed scanner +X+Y+Z (5 axis) |
| Software | self reseach software for 3D, 2Ddots cloud, and for control machine | self reseach software for 3D, 2Ddots cloud, and for control machine | self reseach software for 3D, 2Ddots cloud, and for control machine |
| Dimension before packing | 3900*2200*130mm (L*W*H) | 4000*2350*130mm (L*W*H) | 3000*1850*130mm (L*W*H) |
| Weight | 1000Kg | 1200Kg | 1560KG |
Warranty
One year from the date the machine arrives the destination Except
consumable part of the lamp and damage artificially. The seller is
responsible for offer free fittings in the warranty period (the
buyer has to send the damaged fitting to seller.)
The artificial damage in the warranty period and damage after
warranty period, the seller offers paid service. If the customer
needs the engineer to supply the service oversea, all the expends
will be paid by the customer.
Samples

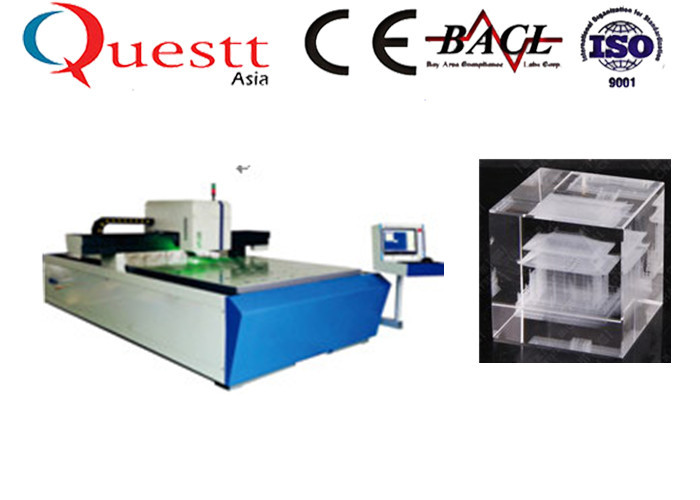

Machine overview
