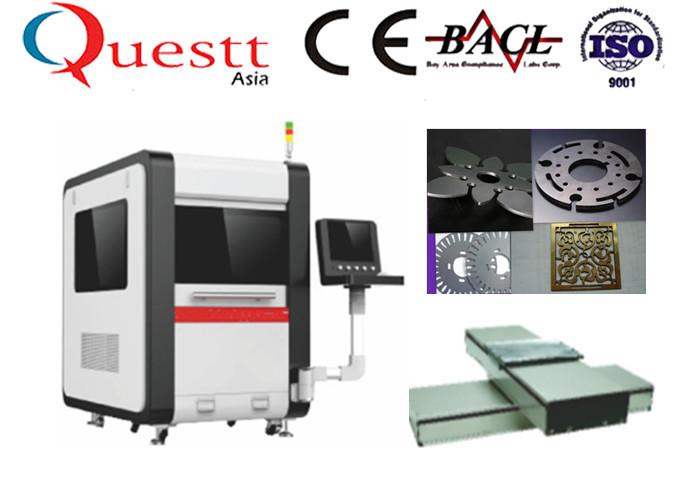

| Machine description | QA-C300B big format laser cutting machine has high quality beam,
high reliability, good optical mode, high top power, smooth
incision, good perpendicularity, it is a special cutting machine,
which is suitable for stainless steel,carbon steel, Copper,
Aluminum, Mo to cut and punch, the cutting speed and incision are
both high level, CN programe,can process any graphics and text,
running stably, good processing quality, high efficiency, good
precision, easy operation, convinient maintenance.
|
| Accessories | Laser,laser power supply,laser position system,optics
system,cooling system,computer control system,cutting worktable,gas
system |
| Technology parameters | Laser rated power: 300W Laser wave length: 1064μm Laser work material: Nd: YAG crystal Pulse frequency: 1-150Hz Cutting format: 1200×1200mm Z axis travel: 120mm Top load of worktable: 200kg Work current: 100-450A Pulse width: 0.1-3ms Beam divergence angle: ≤5mrad Power instability: ≤±5％ Accuracy: 0.15mm Location speed: 3m / min Cutting speed:1m/ min(1mm stainless steel plate) Top cutting speed: 2m/min(1mm) Repeat location precision: ±0.2mm Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm copper≤0.5mm aluminum≤0.8mm Continuous work time: 24h Minimum cutting width ≤0.2mm(material thickness 1mm) Cutting worktable: stepper motor table The whole power cost: 18KW Focusing mirror configuration: 3inch,choose 4 inch Power supply: three-phase 380V/50Hz/30A |
| Applicable field | It is used widly on advertising signs production, sheet metal
structures, production of high and low voltage electrical
cabinet,textile machinery parts,kithen, auto, machinery, metal
technics, saw, electrical parts, glasses, spring, PCB, electical
kettle, medical microelectronics, hardware, tools,etc. Suitable material: stainless steel,carbon steel,alloy steel,spring
steel,copperplate,aluminum plate,gold,silver,titanium, etc metal
plates and pipes. |
