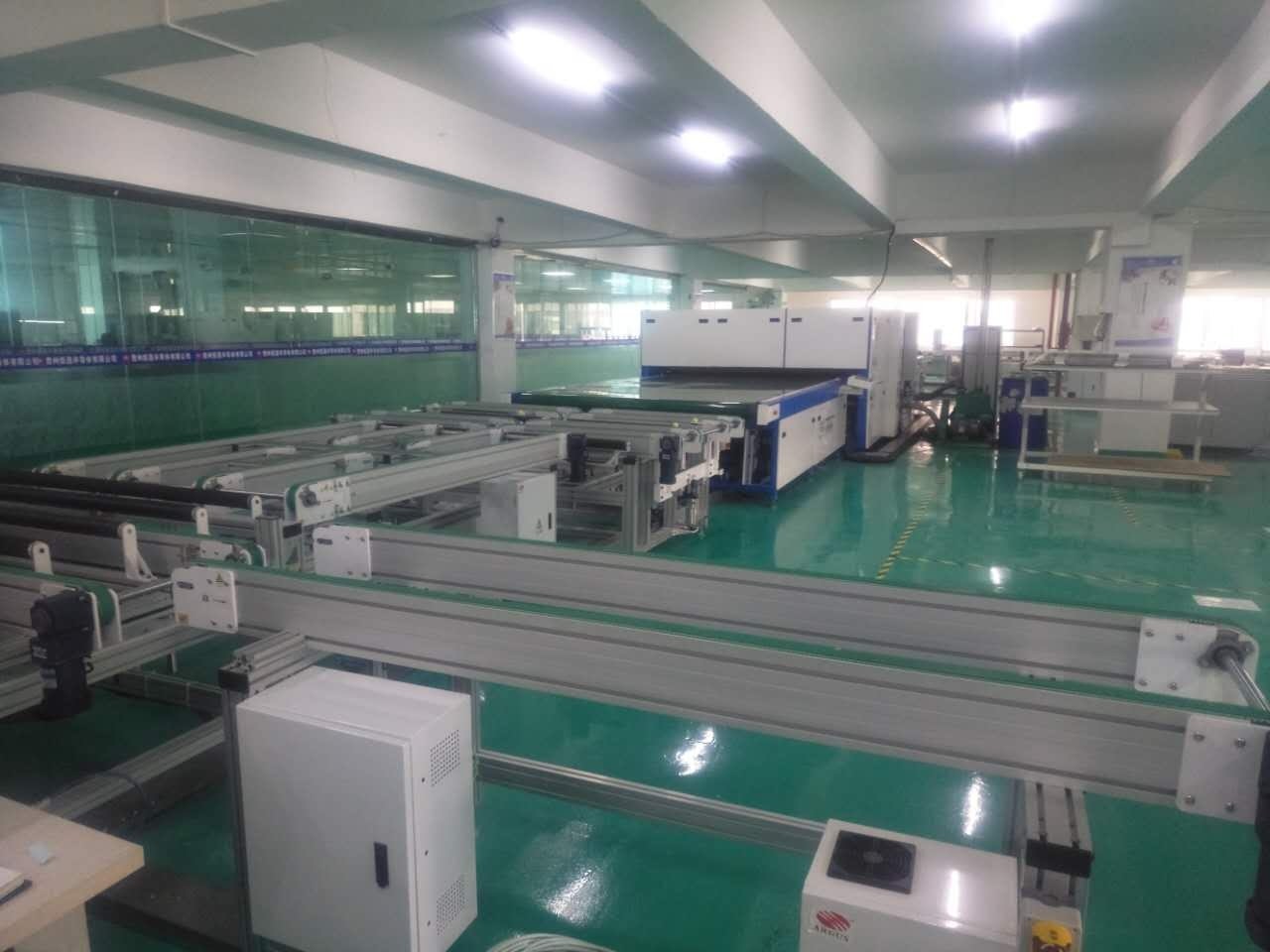

All Black Solar Panel 72pc 144pc Production Line 350W 500W Mono
Silicon Solar Cell
Overview
The equipment is specially used in the filtration of solar energy
mono-crystalline silicon and the poly-crystalline silicon cell
pieces. Through stimulates the solar spectrum lamp-house, carries
on the testing and surveys to the cell module related electrical
parameter, according to the measurement result classifies the cell
piece.
It has unique apparatus of modifying, to input the compensate
parameter, it will carries on automatically
/ manual temperature compensation and compensate with the light
intensity, and automatically
measures and modifies the temperature.
Features
1. Optimized PID control improves the accuracy of temperature
control. The fabric strengthened offset plate extends the using
time and reduces the working costs. The program-controlled design
levels up the flexibility.
2. The strengthened design and the high smoothness avoid the
laminated fragment and shift. Hot working design of the computer
auxiliary reduces the temperature unevenness on controlling of the
false muti-spots. The close heat conduction coupling avoids
temperature fluctuation on the laminated process.
Parameters
| Parameters |
| Power | 35KW | Power Supply | AC380V Triphase four Wires |
| Heating Mode | Oil Heating | Temperature Control | PLC Intelligent Control |
| Laminating Time | 2-4 Minutes | Environmental Temperature | 0℃-50℃ |
| Temperature Precision | ±1℃ | Temperature Uniformity | ±3℃ |
| Temperature Range | 30℃-180℃ | Module Height | 20mm |
| Pumping Speed | 70 L/S | Air Supply | 0.8-1.2MPa |
Application
The entire stainless steel chamber avoids welding deformation of
the stainless steel and the general steel.
The high quality welding of argon reduces vacuum system leaking
rate.
Hot working design of the computer auxiliary reduces the
temperature unevenness on controlling of the false muti-spots.
Solar Panel:
Higher solar module efficiency lower solar system cost per watt
New Design, 5BB Full Cell, Monocrystallion silicion Higher cells
efficiency, better light converting rate
Solar Panel Dimension: 1640*992*35mm, high winds (2400PA) and snow
loads (5400PA)
Maximum Power: 335W, voltage at Pmax: 34.00V, current at Pmax:
9.85A
Warranty: 25-year transferable power output warranty
| Parameters of 60Cells Monocrystalline Solar Panels Mono 30V 335W
High Efficiency PV Module |
| Module | 315M-60 ~ 335M-60 |
| Encapsulation | Class/Eva/Cell/Eva/Backsheet |
| Maximum Power Pmax(W) | 315 | 320 | 325 | 330 | 335 |
| Maximum Power Voltage(Vmp/V) | 33.20 | 33.40 | 33.60 | 33.80 | 34.00 |
| Maximum Power Current(Imp/A) | 9.49 | 9.58 | 9.67 | 9.76 | 9.85 |
| Open Circuit Voltage(Voc/V) | 40.60 | 41.00 | 41.30 | 41.60 | 41.80 |
| Short Circuit Current(Isc/A) | 10.05 | 10.14 | 10.23 | 10.30 | 10.39 |
| Cell Efficiency(%) | 21.37 | 21.71 | 22.05 | 22.38 | 22.72 |
| Module Efficiency(%) | 19.36 | 19.67 | 19.98 | 20.28 | 20.59 |
| Power Tolerance(W) | 0~+5W |
| Temperature Coefficient of Isc(αIsc) | +0.059%/ºC |
| Temperature Coefficient of Voc(βVoc) | -0.330%/ºC |
| Temperature Coefficient of Pmax(γVoc) | -0.410%/ºC |
| STC | Irradiance 1000w/m2, Cell Temperature 25ºC, Air Mass 1.5 |
