Laser automatic wire stripping machine for scrap copper 30W YAG
Overview
As a result that mechanical stripping might cause an extrusion and
cutting force to wire core due to jaw contact, and such damage to
the wire core.
If the jaw does not touch metal wire, the insulation layer cant be
cut cleanly. Regarding multi-layer composed of rayon knitted
leather insulated wire, mechanical stripping is more difficult to
meet the requirements.
Regarding multi-layer composed of rayon knitted leather insulated
wire, mechanical stripping is more difficult to meet the
requirements.
Advantages
1. Its combined twisting and crimping machine togther , and it save
the time for transport-
ation and conraposition
2. Its adopted imported servo motor and high precision ball screw,
and the loading accur-
acy reach 0.01mm, it can accurately locate position of Twisting and
Crimping High performance PLC controller with complete
function,simple and convenient operation
3. It can assembled with our four head high precision laser
stripper and special harness processing technology, it will
eliminate the traditional wetting process and directly crimping the
harness and save a lot of time
4. Its more suitable for precision line;
Parametes
Model | QA-C30-2H |
Laser type | CO2 laser |
Laser output power | 30W |
Wavelength | 10600nm |
Laser power adjustment | 0~100% |
Stripping speed adjustment | 0~200mm/s |
Repeating accuracy | ±0.03mm |
Cooling mode | Air cooling |
Power supply | 220(110)V/50(60)Hz/ 1.5kVA |
Machine Size | 1140×665×1115 (L×W×H)mm |
Cable stripping process
| No. | Sequence | Equipment and Tool | Time cost | Worker | AUTOMATION |
| 1 | Arrange the cables | Human beings | | 4-5 | We can supply the complete automation production line especially for your request. |
| 2 | Jacket strip | Twin head CO2 laser striper | 0.5s/cable | 1 |
| 3 | Jacket remove | Remover | 10s/bin | 1 |
| 4 | Shield cutting | Four head Fiber laser Striper | 20s/3bin | 1 |
| 5 | Shield brush | Brush the shield | 10s/bin | 1 |
| 6 | Insulation cutting | Twin Head CO2 laser striper | 15s/3bin | 1 |
| 7 | Insulation remove | Remover | 5s/bin | 1 |
| 8 | Inner conductor cutting | Four head fiber laser | 1s/bin | 1 |
| 9 | 1-10 repeat | | | |
Applications
It is suitable for stripping the internal lines of mobile phones,
computers and Digital Microelectronics products.
Peeling Single line, line, multi-layer line, etc., It is suitable
for small data processing below 0.5mm Especially used for stripping
the extremely thin coaxial line, does not need to turn the wires,
and does not need to go to tin. It can clean the shielded wires
clean and will not damage the insulators.
Sample

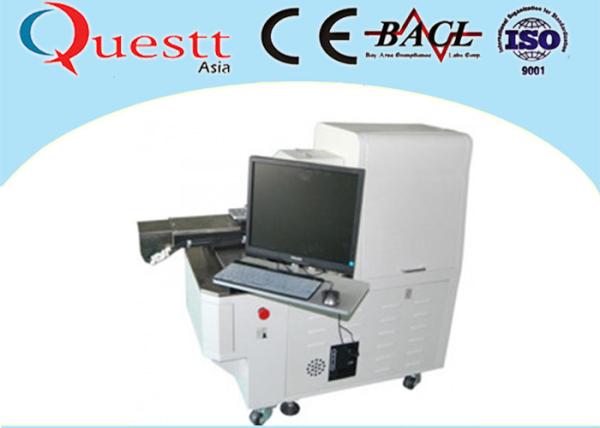

Machine overview
