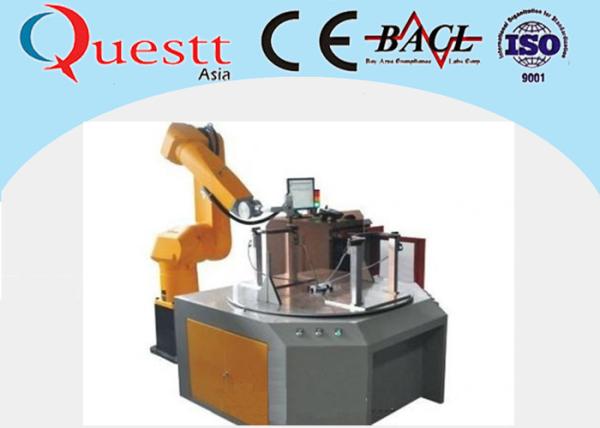

    Fiber Laser Industrial Robotic Automation System 2100mm Arm For Metal / Non Metal

    Ask Lasest Price
    Brand Name : EPSON
    Model Number : QA-RW500
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000 sets each year
    Delivery Time : 15 - 30 days
    • Product Details
    • Company Profile

    Fiber Laser Industrial Robotic Automation System 2100mm Arm For Metal / Non Metal

    Robotic automation system 6 aixs robot for laser cutting machine


    Introduction


    It is instead of the traditional way of processing, reducing the investment mold, reducing the time cost of the parts suppliered in the development cycle, improving processing efficiency and cutting the workpiece accuracy.


    Advantage


    1) Represents the most advanced laser cutting standard;


    2) Professional laser cutting control systems, computer operations, to ensure the quality of cutting and to make the cutting job easier;


    3) The six-axis robot can achieve 3D cutting, easy operate, high intelligence, to ensure high-speed equipment with high-precision and high reliability;


    4)The import laser cutting head is responsive, accurate and effective cooperation with the robot, to ensure cutting focus position and ensure stable cutting quality;


    5) Laser cutting head can withstand 1.0Mpa gas pressure to improved the capacity of cutting stainless steel and other materials.


    Specification


    ModelQA-RC500
    Laserfiber laser
    laser ouputCW
    laser wave length1070 nm
    Beam quality2 mm*mrad
    diameter of fiber50-100um
    Output Power200-2000 W
    Power Stability±2%
    Coolingwater cooled
    RobotRX160L
    Max Load28Kg
    Average Load14Kg
    Axis6
    Posiiton Precision±0.1mm
    Max arm Length2010mm
    Protect GradeIP65
    Arm Weight250kg
    AssembleFlip
    Max Working Area≤4000*2000mm

    Materials

    For stainless steel, carbon steel, silicon steel, titanium and other metal materials.


    Application


    Comparation for 5 axis machinery cutting and 3 axis laser cutting


    5 Axis+CO2 laserRobot+Fiber laser
    Cutting SpeedAccording to the workpiece material, thickness and optional laser power level variesAccording to the workpiece material, thickness and optional laser power level varies, as 1.5MM thick steel up to 5 m / min with a 200W laser
    System cost400,000-1000,000 Euro100,000-200,000 Euro
    System cost for maintenaceHe,Ne,CO2,3.00 Euro/hourNo gas, 100,000 Hours
    System electricity consumption30KW6KW
    Cooling systemBig Chiller400W
    Space50-100M210M2
    Gas costaccording to Materials1.5mm carbon steel,O2 1Euro/hour
    Programe wihtout PCnoyes
    Precision50um100uM
    Cutting Materialsmetal and non-metalmetal

    Used in factory


    Robot overlook
