    Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror

    Ask Lasest Price
    Brand Name : Questt
    Model Number : Robot150
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union,, L/C
    Supply Ability : 3800 sets / year
    Delivery Time : 8 days
    • Product Details
    • Company Profile

    Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror

    Mini jewelry gold laser welding machine 150W Imported lens reflection mirror


    Introductions


    Robot150 gold laser welding machine is a portable mini laser welder,the laser source is YAG laser , with X lamp and diamond Rod in the laser device. The laser output power can reach 150W or even more.

    There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.

    The processing type is heat transmission, processing work pieces surface by laser radiation , heat transmit from surface to bowel, by controlling laser width, energy, top power and repitition frequency to melt workpieces , form a special melting pool.


    Features


    1 high temperature bearing

    2 Imported lens and reflection mirror

    3 small heat-affected zone

    4 high efficiency, small heat-affected zone

    5 Humanized design, non-pollution

    6 high welding quality, perfect laser beam


    Specification data


    typeRobot150
    Output laser power150W
    Energe70J
    Wave length1064nm
    Laser power supply3.5KW
    Laser welding minimum melt pool0.1mm
    Laser pulse frequency≤50Hz
    Laser pules width≤20ms
    Port adjusting scope0.1~3.0mm
    Port size0.2~3.0mm
    Protective gasyes (N2)
    Power demand220V one-phase/50Hz/20A

    Applications


    Jewelry, golf head, medical equipment, instrumentation, electronic, mechanical processing, auto industries

    This mini type laser welder is especially design for jewelry.


    Welding Sample

    Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror


    FAQ


    1 What is the payment term?

    T/T , L/C, Westen Union

    2 What is the after-sale service?

    Engineer available to serve overseas.

    3 What is the warranty ?

    1 year , whole life service.

    4 Are you factory or trading company?

    We are factory, we produce the machines by ourself.

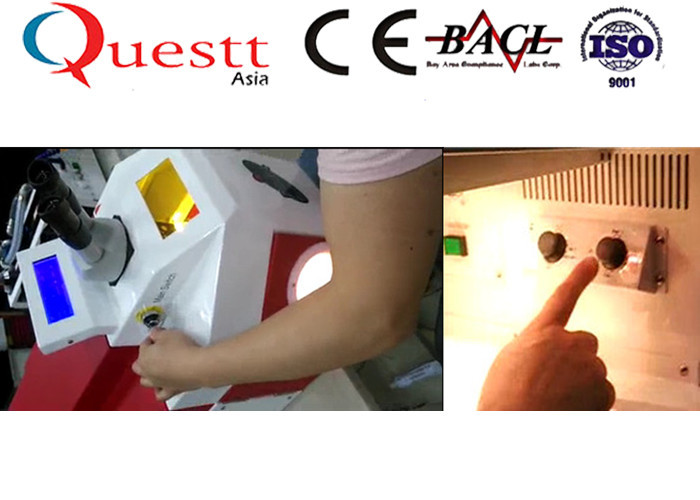

    Desktop laser welder details


    Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror


    Humanized Design Mini Jewelry Laser Welding Machine With Imported Lens Reflection Mirror
