Jewelry Soldering Machine 200W with Water Chiller YAG laser source
Introduction
This system is especially suitable in the jewelry, mould and golf
industry.
It can process welding and repairing for all the metal materials.
There is no special block needed during the processing. The pieces
to be processed can be hold by hand, and to be welded under the
microscope conveniently.
It is more reliable, more durable, more convenient and effective.
Besides, laser spot welding can be used to group weld tiny
components, for example, weld motor electrode and optical
components in greenhouse or special condition.
The Observing system is equipped with special-purpose microscope
observing system with cross cursor. It has high speed electron
flitting device to protect the operator's eyes from being hurt.
Advantages
1 Speedy
2 high efficiency
3 big depth
4 small deformation
5 small heat-affected zone
6 high welding quality
7 non-pollution
8 Humanized design
Specification
Jewelry
Mold laser welding machines .pdf
| type | Robot200J |
| Output laser power | 200W |
| Wave length | 1064nm |
| Laser power supply | 4KW |
| Laser welding minimum melt pool | 0.1mm |
| Laser pulse frequency | ≤50Hz |
| Laser pules width | ≤20ms |
| Port adjusting scope | 0.1～3.0mm |
| Port size | 0.2～3.0mm |
| Protective gas | One way |
| Power demand | 220V one-phase/50Hz/20A |
| Figure size of system | Laser welder | 1160X640X1410mm |
| Water chiller | 740X600X1090mm |
Applications
It can be used to process the spot welding and seam welding for
many small scale metal components, such as Titanium, Nickel,
Aluminum, Stainless steel, Gold, Argentine, Copper, Platinum.
It can process the spot welding on the contactor of the relay, the
steel strip of the computer floppy disk driver, the pins of the
printer, and also process the seam welding of the metal tube and
belt etc.
Jewelry Soldering Samples:

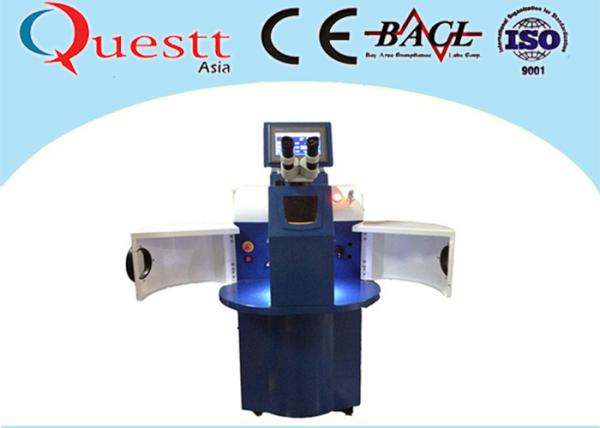

Machine outlook
FAQ:
1 Q: What is the warranty of the Jewellery laser welder?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service for little problems, using online chatting tools
like Whatsapp to talk with customers directly for all questions .
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate
the machine.
We can also send engineers to your factory for training. Or you can
send worker to gain training in our factory directly.
