10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication

    Buy cheap 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication from wholesalers

    Buy cheap 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication from wholesalers
    • Buy cheap 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication from wholesalers
    • Buy cheap 10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication from wholesalers

    10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication

    Ask Lasest Price
    Brand Name : Questt
    Model Number : Quantum - FL10B
    Certification : CE ISO BACL
    Price : Negotiable
    Payment Terms : T/T, Western Union,, L/C
    Supply Ability : 2680 sets / Year
    Delivery Time : 8 working days
    • Product Details
    • Company Profile

    10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication

    Jewelry Laser Marking Machine CE Certificate Imported Galvo Scanner Laser device

    Description

    Quantum - FL20 Jewelry Laser Marking Machine is a benchtop laser marking machine with four wheels on the ground, so the machine can move easily in your place.


    The laser marker can automatically perform the engraving of characters, signs, graphs, images, bar codes, two-dimensional codes, and automatically increasing serial numbers to a wide range of materials.


    The laser printing machine can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.


    We have rotate device, conveyor, handy welding head for optional choices


    Specification data

    Jewelry Laser Marking Machine.pdf


    Product Specifications
    ProductQuantum-FL10B Metal Laser Marking Machine
    PurposeMarking printing engraving
    Laser
    Laser Wavelength1000-1100nm
    Laser TypeFiber laser source
    Laser Output Power10W
    typical Laser Life Span100,000hrs
    Modulation frequency20-100kHz
    Max. Working Speed7000mm/s
    GalvanometerYes
    LensF-Theta Lens
    Working Area
    Beam Diameter/QualityM2<1.2
    Working Area70x70mm, 110x110mm (standard), 160x160mm, 250x250mm
    Repeatability0.01mm
    Positioning accuracy0.01mm
    Min Line Width0.01mm
    Marking/Cutting Depth0.01-0.2mm (depending on material)
    Control
    CoolingAir cooled
    No. AxisZ Axis (Manual)
    RotationOptional(Automatic only)
    Power supplyAC220V, 50/60Hz, 1kVA (110-120V Optional)
    ControllerComputer with marking software
    USB 2.0 CompatibleYES
    File TypesPLT, DXF, AI, DST, BMP, JPG, TIF
    Max. Operating Time24hrs (recommend 1hr cool-down period)
    Physical Characteristics
    Dimensions690x700x1100mm
    Weight (kg)120kg
    Guarantee:
    General Guarantee12 Months from date of arrival at destination
    Laser Source2000hrs/3 months - LAMP PUMPED (Except Smart Series)
    20,000hrs/18 months - Smart Series
    10,000hrs/12 months - Diode Pumped
    100,000hrs/2 years - Fiber LASER

    Applications


    The spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication

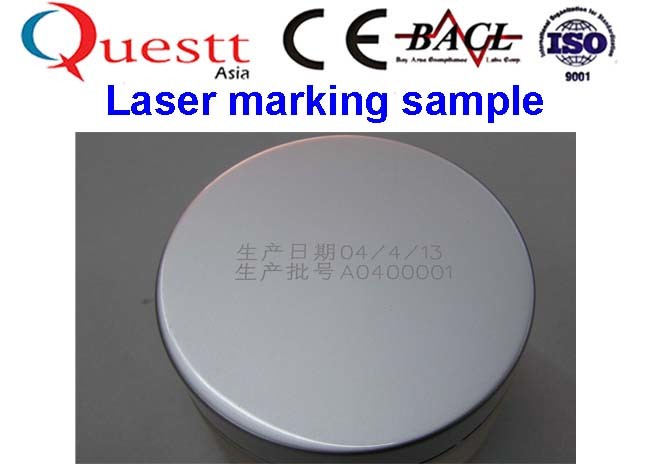

    Samples


    10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication


    FAQ


    1 Q: What is the warranty of the machine?

    A: The warranty is 12 month, but whole life service.


    2 Q: What is the payment term?

    A: T/T, L/C, Westen Union, PayPal etc.


    3 Q: What is the service

    A: Engineer offer oversea service .


    4 Q: How about the quality?

    A: High quality best price.


    Different angle of the machine


    10W Jewelry Laser Marking Machine , Imported Galvanometer Laser Scanner For Medication
