UV Laser Automatic Marking Machine

    Buy cheap UV Laser Automatic Marking Machine from wholesalers

    Buy cheap UV Laser Automatic Marking Machine from wholesalers
    • Buy cheap UV Laser Automatic Marking Machine from wholesalers
    • Buy cheap UV Laser Automatic Marking Machine from wholesalers

    UV Laser Automatic Marking Machine

    Ask Lasest Price
    Brand Name : Questt
    Model Number : QA-UVS10
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1220 Sets/Year
    Delivery Time : 12 days
    • Product Details
    • Company Profile

    UV Laser Automatic Marking Machine

    UV automatic marking machine CE 10W CNC auto 4 station rotate table


    Descriptions


    QUESTT QA-UVS10 UV laser automatic marking machine is a sealed box type UV laser marker. The whole working area is covered with a sealed boxes, thus, it is much better to protect you during working time, especially design for high level safety demands countries in Europe and American .


    The UV laser device adopt diode pump laser as the pump source, end-pump fiber coupling, high power output, long use life time, easy to maintenance, internal heatsink air cooling, ensure stable laser output, can be long time continuous working.Clean lab package, TEM00 base mode output(M2<1.2),can achieve single and remote RS232 computer control, outside GATE control, outside TTL and PWM control.


    The UV laser etching machine incorporates a high speed galvo scanner head, enabling the highest precision of marking at exceptionally high speeds on a wide range of materials. Especially for non metal, which fiber laser can not finish well.


    Specification


    Model No.QA-UVS10 UV laser industrial marking Machine
    Laser typeUV laser
    The average output power10W
    Laser wavelength355nm
    Beam Quality(M2)1
    Frequency20KHz-200KHz
    Repetitive accuracy0.005mm
    Min Linear Width0.01mm
    Marking Depth0.01-0.2mm
    Max Speed7000mm/s
    GalvanometerYes
    LensF-Theta Lens
    Standard marking175*175mm
    The optional scope of marking70×70mm / 110x110mm / 175×175mm / 220x220mm
    Consumed power<500W
    File formatPLT, DXF, AI, DST, BMP, JPG, TIF,JPEG
    Power Supply220V/50Hz/15A (110-120V Optional)
    Cooling systemAir cooling
    Grosss weight160 kgs

    Features


    1 high ratio photo translating
    2 high quality laser beam


    3 Imported UV laser device
    4 low running cost


    5 sealed working table
    6 precison laser marking


    Application


    PCB, BGA, FCB, IC, computer fittings, industry bearing, timekeeper, electronic device, communicate devices, electrical wire and cable, clothing, food packing, jewelry, cigarette space and aviation device, automobile parts, home appliances, hardware, etc.


    Engraving and markng the characters and graphics.


    UV laser device


    UV Laser Automatic Marking Machine

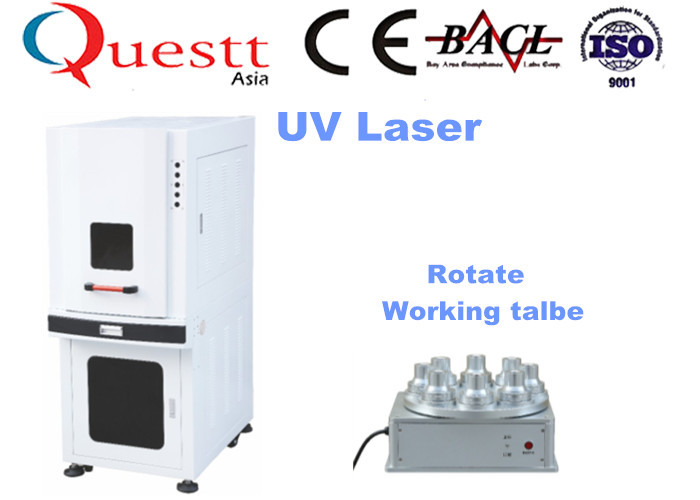

    Machine outlook

    UV Laser Automatic Marking Machine


    FAQ

    1 Q: What is the warranty of the machine?

    A: QUESTT Lasers have a warranty for 1-2 years.


    2 Q: Are you a factory or trading company?

    A: QUESTT Lasers is a factory for 22 years.Got import and export License.


    3 Q: How about the quality?

    A: Questt Lasers Technology is from Germany.High quality best price.


    Sample of ceramic

    UV Laser Automatic Marking Machine
