CO2 CNC Laser Engraving Machinery for MDF Wood Stone etching
cutting 130W
Introduction
QA130-1325A CO2 Laser Engraving Machinery is designed to cut big size material sheet like acrylic or wood. Nice
outlook and high efficiency.
Whether you are cutting acrylic, plastic or advertising signs,
whether you are in the field of architecture model or veneer
marquetry, whether you are working with paper or cardboard… Laser
cutting has never been so simple, accurate, and fast! As one of the
world’s leading laser manufacturers, Questt Laser offers a full
scope of state-of-the-art laser equipment to deliver quick, clean,
quality results for a broad range of industrial laser cutting
needs.
Features
1. Compact packaging, low freight charge.
2. Spare parts standardization, the same number of parts can be
current used for different machine.
3. Blade surface and shell side surface at the same height,it's
more convenient for up-down loading
4. Laser cover with the laser head outside. Convenient for the
operator to monitor the process at real-time
5. large format laser cutting cut smooth fine, to meet customer
demand for cutting and engraving industry .
6. the optical path stable design , industrial water-cooled machine
when equipped to ensure large format cutting, countertop laser
power output for each position is consistent , fast and efficient,
stable quality .
7. Standardized production line in laser industry.
8. 80-150W CO2 laser tube to choose
9. Laser work, support Coreldraw, AutoCAD
Specification
| Laser power | 130W |
| Laser type | CO2 glass tube |
| Cutting area | 1300mm x 2500 mm |
| Max. Object size | 1300mm(no limited) |
| Max. cutting thickness | Acrylic 0-30mm |
| Orientation precision | 0.05mm |
| Repeating orientation precision | 0.02mm |
| Max. movement speed | 15M/MIN |
| Cooling system | Water cooling |
| Power | 220V/50HZ/(35A/40A) |
| Average power consumption | 12.5KW |
| Overall dimension | 3450x2150x1500mm |
Materials
| Items | Engraving | Cutting |
Fabric Denim , leather , polyester , cotton , nylon , pongee ,
suede , jeans ,satin , corduroy , chiffon , tulle , fleece | yes | yes |
| Wood Plywood , bamboo , veneer , mdf , polymeric materials | yes | yes |
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester ,
sheet , insulation layer | yes | yes |
| Organic Acrylic , rubber , resin , epoxy | yes | yes |
| Paper Packaging materials , tin foil , card , cardboard , chipboard | yes | yes |
| Composite Double color plate organic board | yes | yes |
Stone Ceramic , tile , marble ,granite , slate , gravestone ,
porcelain , tombstone , ceramic plate | yes | no |
Other Nonmetals process materials , coating materials ,
plating materials , spraying materials | yes | no
|
Applications
Applicable Materials: Wood, Acrylic, Veneer, Plywood, MDF, Leather,
Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass,
Bamboo, ABS Double Color Board, Organic Glass, PVC, Paper,
Paperboard, Cardboard, Marble, Bamboo, Balsa, Rubber Sheet,
Anodized Aluminum, etc.
Applicable Industries: Advertising, Signs, Gifts & Crafts,
Furniture Marquetry, Promotional Items, Plaques, Trophies, Awards,
Precise Ornaments, Souvenirs, Nameplates, Models, Architectural
Models, Furniture, etc.
Samples

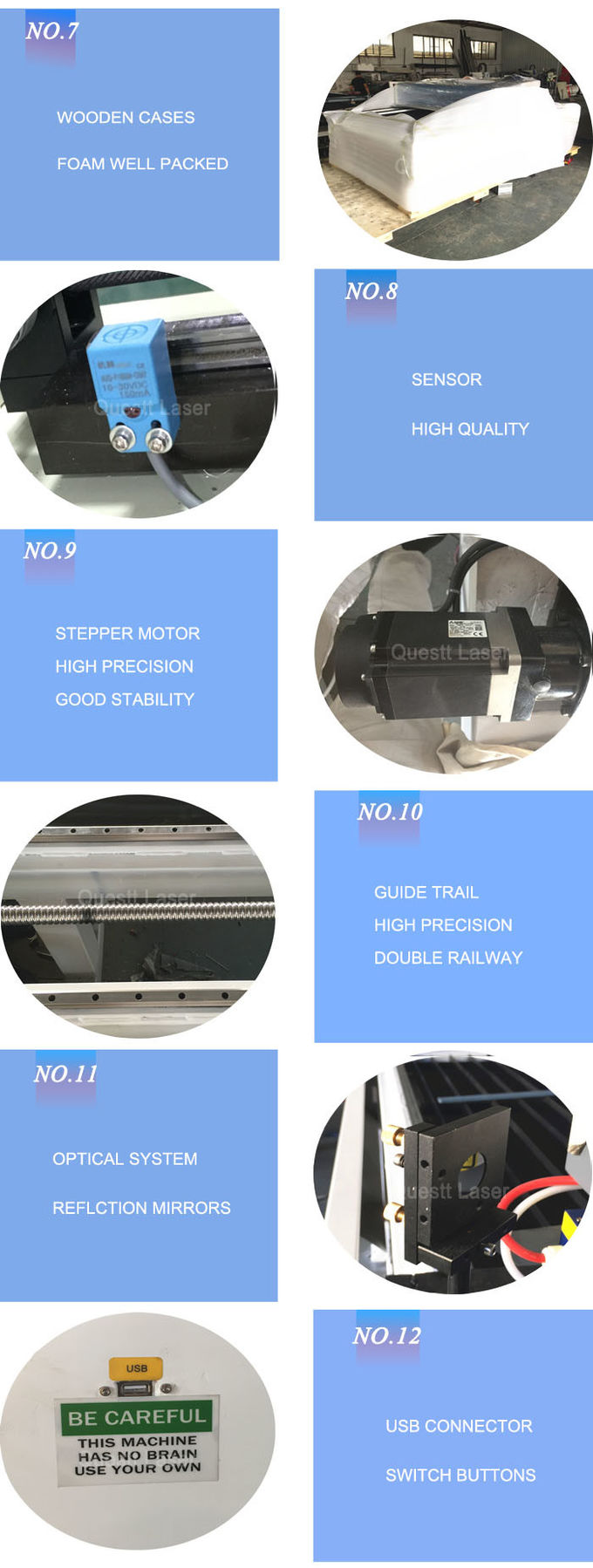

Configuration
Machine overlook
FAQ:
1 Q: What is the warranty of the laser cutting machines?
A: 1 years` warranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service for little problems,
using online chatting tools like Whatsapp to talk with customers
directly for all questions .
4 Q: How is the quality of the machines?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We can also send engineers to your factory for training. Or you
can send worker to gain training in our factory directly.
We offer operation manual and videos, show you how to operate the
machine.
