CO2 laser CNC wood engraving machine for plastic wooden sheet 150W
with CE
Introduction
QA130-1325 CO2 wood engraving machine is designed by upper part and lower part, and the two parts can be
separated. The upper part can be moved down from the machine, and
the lower part can configure suitable platform according to
customers’ needs.
The design changes the traditional engraving method. For some heavy
materials we can put the upper part onto them, so that avoiding the
difficulty of moving the heavy material. Meanwhile, it solves the
problem that platform has a limited bearing ability.
Both parts can be up and down so that engraving objects with
greatly thickness-changing is much easier to process
Features
1. Spare parts: Servo motor,reduction gear and guide rail,etc are
imported with original packaging.
2. Accuracy: Its speed and accuracy are guaranteed by using gear
grinding with high precision,imported guide rail and laser cutting
head under strict assembly.
3. Blade surface and shell side surface at the same height,it's
more convenient for up-down loading
4. Laser cover with the laser head outside. Convenient for the
operator to monitor the process at real-time
5. large format laser cutting cut smooth fine, to meet customer
demand for cutting and engraving industry .
6. the optical path stable design , industrial water-cooled machine
when equipped to ensure large format cutting, countertop laser
power output for each position is consistent , fast and efficient,
stable quality .
7. the machine used in gifts , packaging, printing , stone carving,
wood furniture, toys , electronics, model , paper products,
construction and decoration industries .
8. 80-150W CO2 laser tube to choose
9. Laser work, support Coreldraw, AutoCAD
Specification
| Laser power | 130W |
| Laser type | CO2 glass tube |
| Cutting area | 1300mm x 2500 mm |
| Max. Object size | 1300mm(no limited) |
| Max. cutting thickness | Acrylic 0-30mm |
| Orientation precision | 0.05mm |
| Repeating orientation precision | 0.02mm |
| Max. movement speed | 15M/MIN |
| Cooling system | Water cooling |
| Power | 220V/50HZ/(35A/40A) |
| Average power consumption | 12.5KW |
| Overall dimension | 3430x2130x1500 |
Materials
| Items | Engraving | Cutting |
Fabric Denim , leather , polyester , cotton , nylon , pongee , suede , jeans ,satin , corduroy , chiffon , tulle , fleece | yes | yes |
| Wood Plywood , bamboo , veneer , mdf , polymeric materials | yes | yes |
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester , sheet , insulation layer | yes | yes |
| Organic Acrylic , rubber , resin , epoxy | yes | yes |
| Paper Packaging materials , tin foil , card , cardboard , chipboard | yes | yes |
| Composite Double color plate organic board | yes | yes |
Stone Ceramic , tile , marble ,granite , slate , gravestone , porcelain , tombstone , ceramic plate | yes | no |
Other Nonmetals process materials , coating materials , plating materials , spraying materials | yes | no
|
Applications
Applicable to acrylic, wood, double color plates, paper, leather
and other non-metallic materials.
Applicable to advertising, art craftworks, model, furniture and
other processing industries.
Samples

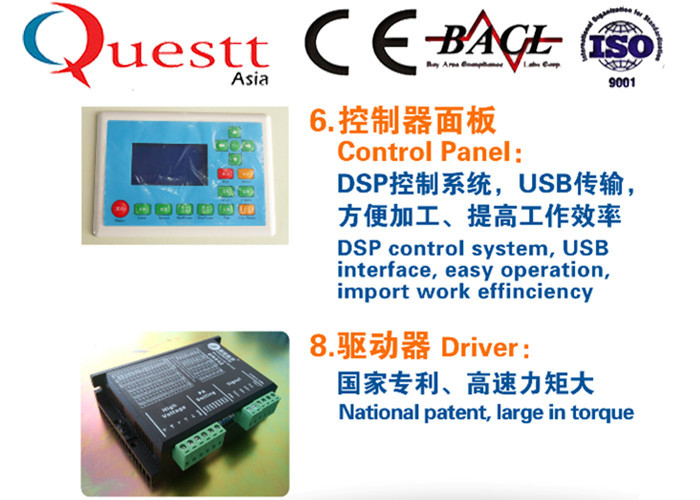

Configuration

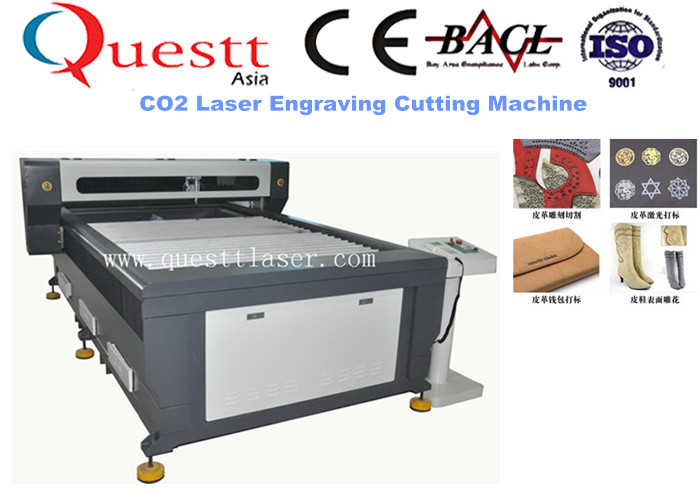

Machine overlook
