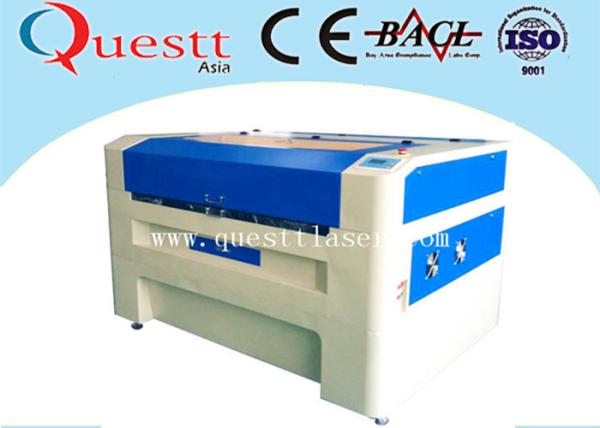

CO2 laser engraving cutting machine for Wood MDF Acrylic woking
table 900x600mm
Introduction
QA80-9060 CO2 laser engraving cutting machine is a mini type laser engraving
machine
CO2 laser cutting engraving machne is used specially for the
nonmetal art crafts, gifts and the engraving of bamboo products.
The mechanical structure is strong and stable, making the machine
to run at high precision. The electrical ability is stable, the
engraving speed is high, and the precision is high.
It adopts the unique technology as screw rotated driving and double
ball-screw driving It has very wide prospects of application.
Its speed and accuracy are guaranteed by using gear grinding with
high precision,imported guide rail and laser cutting head under
strict assembly.
Features
1. Stable and durable sheet metal structure with good deformation
resistance is capability and excellent appearance. Working table
area is 900mmX600mm.
2. Synchronous belt drive and semi-closed-loop structure, ensures
high precision engraving and fast speed. (engraving speed up to
800-1000mm/s)
3. Equipped with 30W RF metal laser. Output beam of high quality,
excellent power stability, long life, low use-cost,
maintenance-free, and high efficiency.
4. There is no machine starting cost. Operation cost is low.
5. Zn-Fe-Alloy honeycomb working table (strip panel working table
optional). The working table has hopper exhaust fans with good
exhaust suction effect.
6. Smarting nesting function improves material utilization rate.
7. Offline control operation is convenient and efficient.
8. Safe and durable circuit design.
Specification
| Model | QA80-1060 | QA60-9060 | QA60-6040 |
| Laser | CO2 glass sealed laser tube or RF metal sealed laser tube optional |
| Laser power | 60W/80W/100W/130W | 60W/80W/100W |
| Work platform size | 1000×600mm | 900x600mm | 600x400mm |
| Engraving speed | 1-1000mm/s |
| Cutting speed | 1-500mm/s |
| Worktable | honey-comb or slatted optional |
| Precision | ≤±0.025mm |
| Graphic format | PLT,BMP,DXF,DST,TIF |
| Working temperature | 0-45 degree C |
| Motor type | Stepper Motor |
| Water Cooling | Water chiller |
| The Whole Set | 1PCS CO2 laser cutting machine 1PCS Water chiller 1PCS Air pump 1PCS Fan blower |
| Spare parts | Laser tube, Focal lens, Reflector lens(3PCS) |
| Electricity | 220V/50hz/1kva 110V60HZ 220V60HZ |
Materials
| Items | Engraving | Cutting |
Fabric Denim , leather , polyester , cotton , nylon , pongee , suede , jeans ,satin , corduroy , chiffon , tulle , fleece | yes | yes |
| Wood Plywood , bamboo , veneer , mdf , polymeric materials | yes | yes |
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester , sheet , insulation layer | yes | yes |
| Organic Acrylic , rubber , resin , epoxy | yes | yes |
| Paper Packaging materials , tin foil , card , cardboard , chipboard | yes | yes |
| Composite Double color plate organic board | yes | yes |
Stone Ceramic , tile , marble ,granite , slate , gravestone , porcelain , tombstone , ceramic plate | yes | no |
Other Nonmetals process materials , coating materials , plating materials , spraying materials | yes | no
|
Applications
The nonmetal materials like doublecolor board, organic
glass,crystal, wood, paper, leather
and rubber etc.
The industries like advertising logo making, crafts& gifts,
crystal, relief sculpture, leather
&cloth, embroidery and decoration.
Samples
Configuration
Machine overlook
