    100 W CO2 Nonmetal Portable Laser Marking Machine Water Cooled CE Certificate

    Ask Lasest Price
    Brand Name : Questt
    Model Number : Smart100
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000 Sets/Year
    Delivery Time : 9 days
    • Product Details
    • Company Profile

    100 W CO2 Nonmetal Portable Laser Marking Machine Water Cooled CE Certificate


    100W CO2 Laser Marking Machine for nonmetal Water cooled CE Certificate


    Equipment discription


    All the fittings can meet the pipelining processing continues dynamic on line with the proprietary working control software. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers. Marking has non-touched process, permanent effect, humanized operation, and stable running.

    Using software control modules,low power consumption,long life marking ,stable and perfect marking quality support . Maintenance-free.


    Features


    1) Large laser power

    2) Power is controlled by software,continuous adjustable.

    3) Processing cost is low ,any consumble is not needed

    4) Marking scope is large

    5) Mark is clear ,difficult to wear.High efficiency of cutting

    6) Free to control the depth of engraving



    Specification


    Laser mediumCO2
    Laser tubeGlass tube
    Light wavelength10.6um
    MAX output power60W/80W/100W
    PolarizationLinear-vertical 50:1 extinction minimum
    Cooling systemWater cooled
    Diameter of the smallest beam spot0.1mm
    Marking area

    70*70mm Standard

    110*110mm/175*175mm/230*230mm Optional

    Power supply1 phase, 220V, 50/60Hz, 1KW
    Repeatability0.05 mm
    Positioning accuracy0.05 mm
    Marking depth0.01 ~ 0.3mm(according to the material)
    Beam Diameter10um
    Power supplySingle phase 220V AC 500VA 50/60Hz
    Weight150kg

    Application


    Line: Baccy, pharmacy, food and beverage, alcohol, health protection electronics, art-gifts, leather, etc. Material: Paper plastic, film, silver paper, mood, glass, PET, pvc, etc.


    Sample

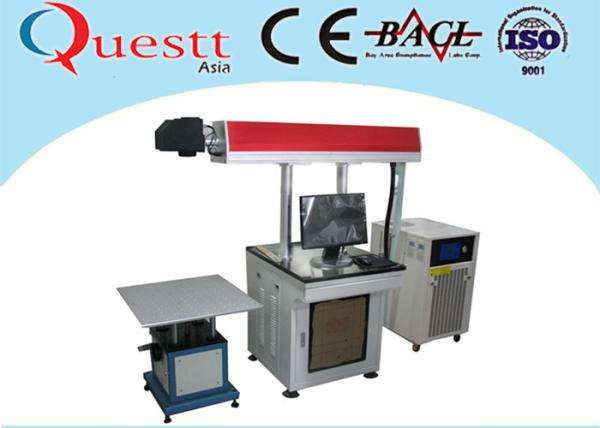

    Machine outlook


    FAQ


    1 Q: What is the warranty of the laser marker?

    A: The warranty is 12 months.


    2 Q: Are you a factory?

    A: Yes, we are factory.


    3 Q: What is the service

    A: Engineer offer oversea service and we offer online service for small problems


    4 Q: Can we customize if we have special request?

    A: Yes you can.


    5 Q: What is the payment terms?

    A: T/T, LC, Westen Union etc.
