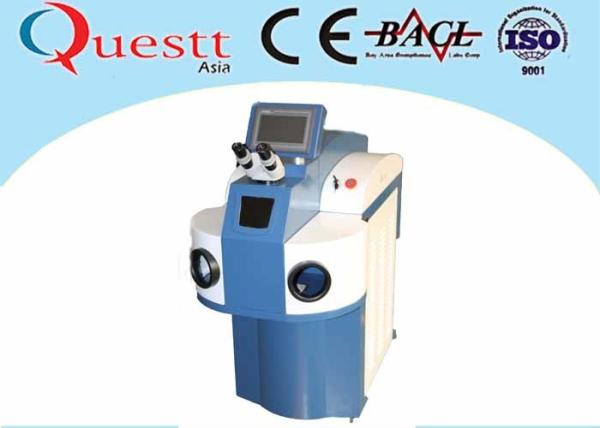

Jewelry laser welding machine with 50W/100w power CO2 laser source
Description:
This welder is specially developed for laser welding of jewelry
used in perforating and spot welding of gold and silver jewelry.
The laser spot welding is an important aspect of laser process
technology application. The spot welding process is thermal
conduction, i.e. the laser radiation heats the surface of work
piece, and the surface heat diffuses to the interior through
thermal conduction and melts the work piece by controlling the
width, energy, peak power and repeating frequency of laser pulse to
form specific molten pool. Because of its unique advantage, it is
widely used in the process of gold and silver jewelry and welding
of mini and small parts.
The surface of the metal will be changed by the laser, it has been
heated and conducted to the deeper of metal rapidly, and the
surface will be melted when the consistency of laser power is
enough, some parts is momentary vapored for the high consistency
,and it is come into being the weld crater.
The laser welding compares with other welding craft can realize the
very many material welding, compares has the superiority, welds the
component thermal deformation to be small, the attachment quality
is high. The laser welding superiority in with can realize
partially the very small scope heating characteristic, widely uses
with the precision component like jewelry, the battery, the
automobile industry, aviation industry some other applications and
so on.
Product features:
- The energy, pulse width, frequency and light spot size can be
adjusted in a large range to realize different welding effects. The
parameters are adjusted by the lever in the seal cavity, which is
simple and highly efficient.
- Ceramic converging cavity is imported from the Britain. It is
corrosion resistant and high temperature resistant, and has 8-10
years service life. The life of xenon lamp is more than 8 million
times.
- Use the most advanced light shielding system to eliminate the
irritation to eyes by light during working.
- Able to work for 24 hours continuously; stable performance; free of
maintenance in 10,000 hours.
- Human-based design accords with ergonomics, avoiding fatigue after
long time working.
Technical parameters
Laser medium: 1.064nm
Max. laser power: 200W
Laser wave-length: 1064nm
Single pulse energy: 100J
Welding depth: 0.1 - 3.5mm(silver, gold and so on)
Welding wire: 0.2mm, 0.4mm, 0.6mm, 0.8mm and more
Pulse width: 0.3 - 20ms
Welding frequency: 0.5 - 30Hz
Adjustable facula size: 0.1-3mm
Control system: micro-computer ,CCD
Power consumed: 4-6KW
Electrical source: 220V±10%/50Hz/30A
Packing size: 990*620*1400mm 510*590*940mm
Application:
Widely used in aviation, aerospace, sports products, jewelry, golf
head, medical instrument, titanium alloy denture, instrument,
electronics, machinery, automobile, etc, especially for the
perforating of gold and silver jewelry, spot welding, repairing,
inlay and welding of claw.
Machine outlook with sample:
FAQ:
1 Q: What is the warranty ?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer
online service for little problems, using online chatting tools
like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate
the machine.
We can also send engineers to your factory for training. Or you can
send worker to gain training in our factory directly.
