Super 50 Watt Old Piping Laser Rust Removal Machine With Gun , Fast Speed

Contaminant:

The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure below) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants

Laser absorption rate for metal:

Based on the metal surface cleaning customized laser, according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage. Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning.

Product features:

1. Laser cleaning has no grinding, non-contact, no thermal effect and suitable for various materials, etc.

2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;

3. No damage to substrate;

4. High cleaning precision, strong controllability

5. Can be used for a long time, low operating costs;

6. The device can realize automatic operation and simple operation;

7. Environmentally friendly, no supplies, no two pollution

Description:

QA-LC50 is a 50W hand held type fiber laser rust removal machine. This is a tigger on gun.

There are 4 wheels on the bottom, so the machine can move freely on floor, the weight is only 36kgs, you can also take up by hand easily. Very convenient for transport.

Comparison with Traditional Clean Methods:

Specifications:

Introduction of Laser Cleaning Technology A.pdf

Principle:

1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;

2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;

3 instant to make the dirt molecules evaporate, gasification or decomposition

Application scope:

Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy

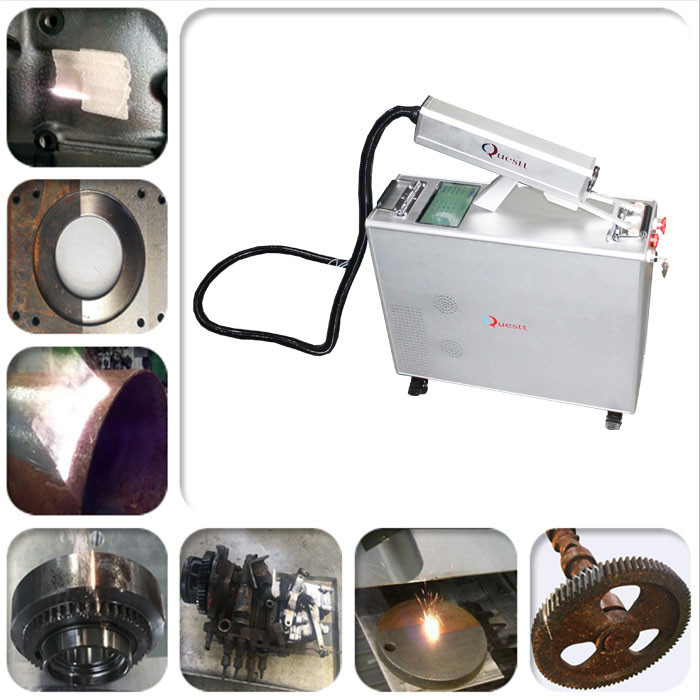

Machine outlook with sample:

FAQ:

1 Q: What is the warranty of this laser cleaner?

A: 2 yearwarranty and whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
