Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger

    Buy cheap Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger from wholesalers

    Buy cheap Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger from wholesalers
    • Buy cheap Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger from wholesalers
    • Buy cheap Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger from wholesalers
    • Buy cheap Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger from wholesalers

    Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger

    Ask Lasest Price
    Brand Name : QUESTT
    Model Number : QA-LC200
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 3888 sets per year
    Delivery Time : 13 days
    • Product Details
    • Company Profile

    Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger

    Portable Laser Rust Removal Equipment For Cleaning , Hand Held Gun Trigger

    Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger

    Description:

    QA-LC200 is a 200W portable hand held laser rust removal machine.

    This new design laser rust removal machine has a hand held gun, a manual trigger to start marking,like the gun trigger for shotting. If you need, you can also fix the gun head up to a working table.

    There are 4 wheels on the bottom, so the machine can move freely on floor, the weight is only 35kgs, you can also take up by hand easily. Very convenient for transport.

    This equipment can also remove oil coating, painting coating, oxide coating and glue of old items which need to renew.

    There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.

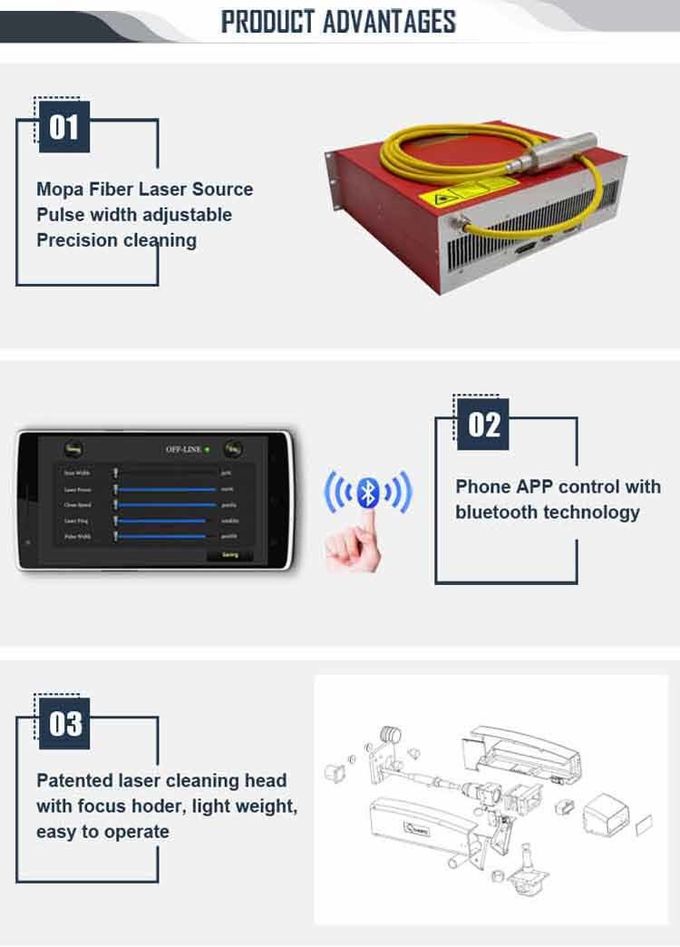

    Product features:

    1. Phone App operation with bluetooth or handheld controller

    2. Suitable for the removal of different materials ;

    3. Free to wrok outside

    4. Pollution-free;

    5. Expansibility;

    6. No damage to the base material;.

    7. Easy to operate,
    8. Time counter on APP interface

    Specifications:


    Model

    QA-LC50

    QA-LC100

    QA-LC200

    QA-LC500

    Laser source

    Fiber

    Fiber

    Fiber

    Fiber

    Laser Power

    50W

    100W

    200W

    500W

    Fiber cable L

    3 M

    5 M

    5 M

    15M

    Pulse Energy

    1 mJ

    1.5 mJ

    3 mJ

    100 mJ

    Wavelength

    1060nm

    1060nm

    1060nm

    1060nm

    Frequency

    50-500KHz

    1-2000KHz

    1-2000KHz

    10-50KHz

    Clean speed

    ≤5 M²/Hour

    10 M²/Hour

    ≤15 M²/Hour

    ≤60 M²/Hour

    Scann speed

    0-7000mm/s

    0-7000mm/s

    0-7000mm/s

    0-7000mm/s

    Cooling

    Air cooling

    Air cooling

    Water cooling

    Water cooling

    Dimension

    650*250*560

    900*450*980

    900*450*980

    1100*600*1100

    Weight

    30Kg

    40Kg

    90Kg

    230Kg

    Beam width

    10-110mm

    10-110mm

    10-170mm

    10-170mm

    Optional

    Manual

    Manual

    Manual

    Manual

    Temperature

    5-40 ℃

    5-40 ℃

    5-40 ℃

    5-40 ℃

    Voltage

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ


    Portable Laser Rust Removal Equipment For Cleaning, Handheld Gun Trigger


    Application scope:

    Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc


    Comparison with Traditional Clean Methods:

    ComparisonLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
    Washing Methodnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
    Harm to base materialNoneYesYesNone
    Washing EfficiencyHighLowLowMid.
    ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
    Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
    Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
    Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
    OperationEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
    InvestmentHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.

    FAQ:


    1 Q: What is the warranty of the laser rust removal machine?

    A: 2 years` warranty and whole life after-sale service.

    2 Q: What is your payment term?

    A: T/T, L/C, Westen Union, etc.

    3 Q: What is your after-sale service?

    A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .

    4 Q: How is the quality of the machine?

    A: Germany high technoloy with good quality.

    5 Q: How is the operation of the machine?

    A: We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

    We offer operation manual and videos, show you how to operate the machine.
